Opening • Fixed

Glass module in Technic Pro

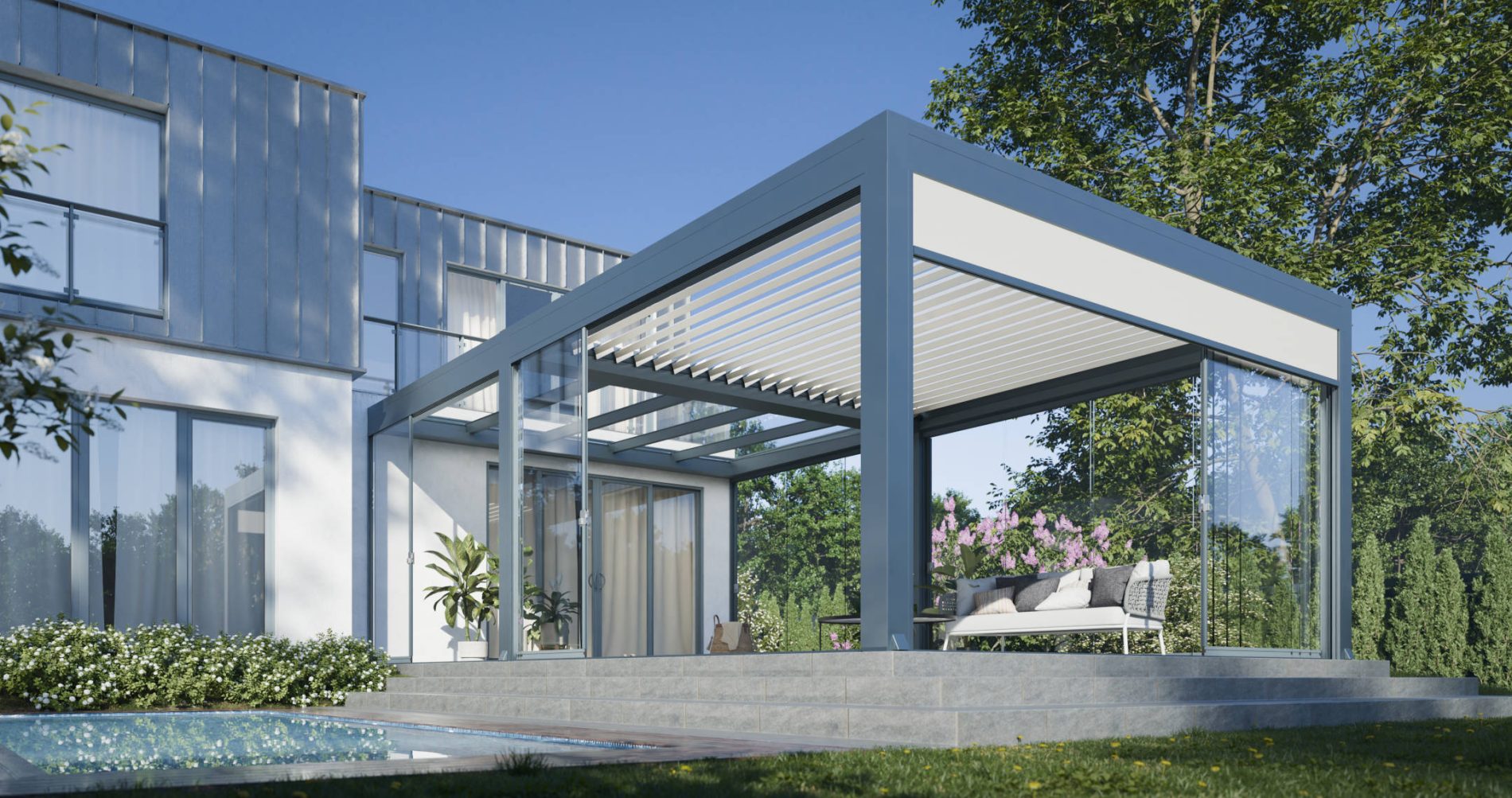

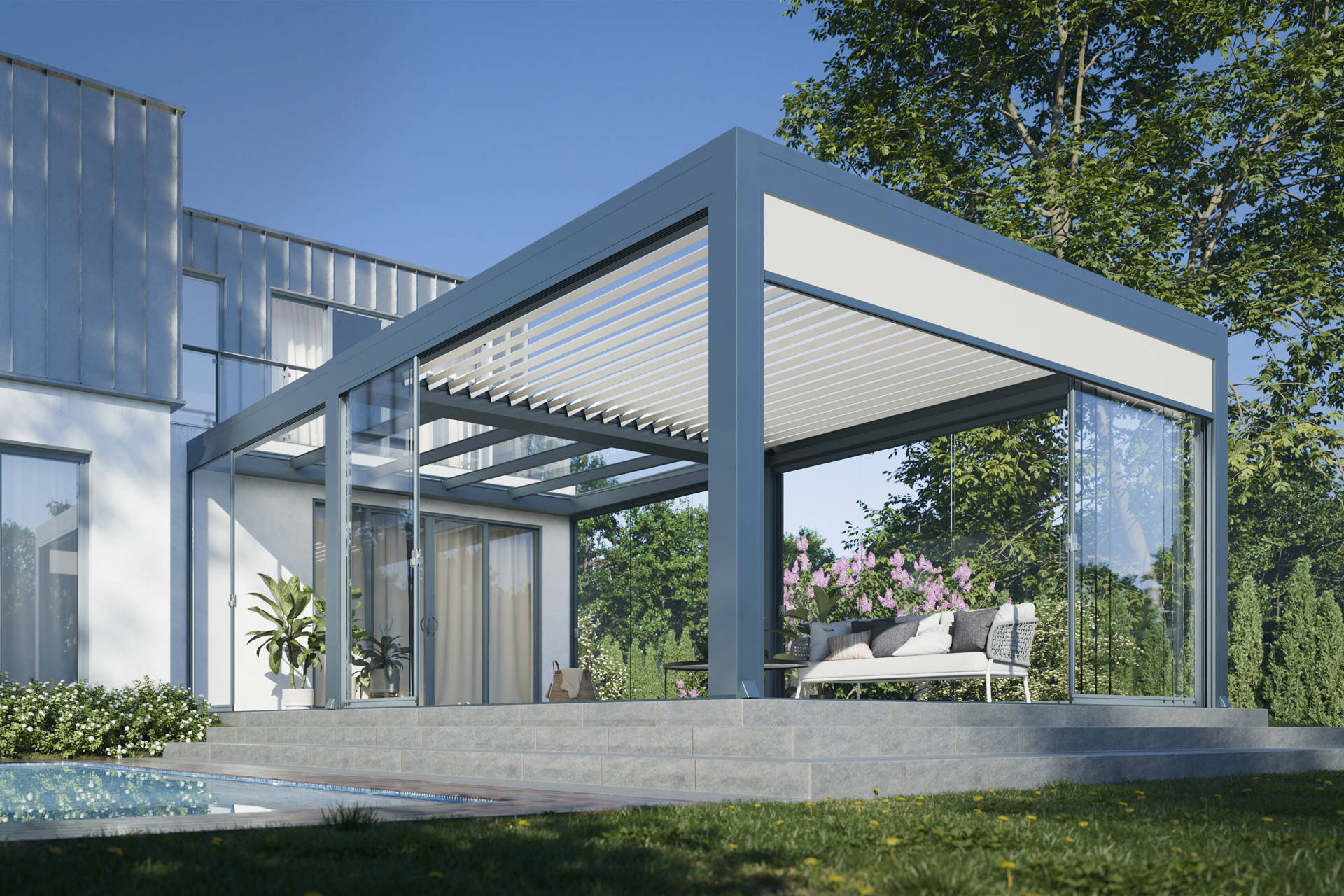

Glass module alongside a rotating louvre roof

01

Description

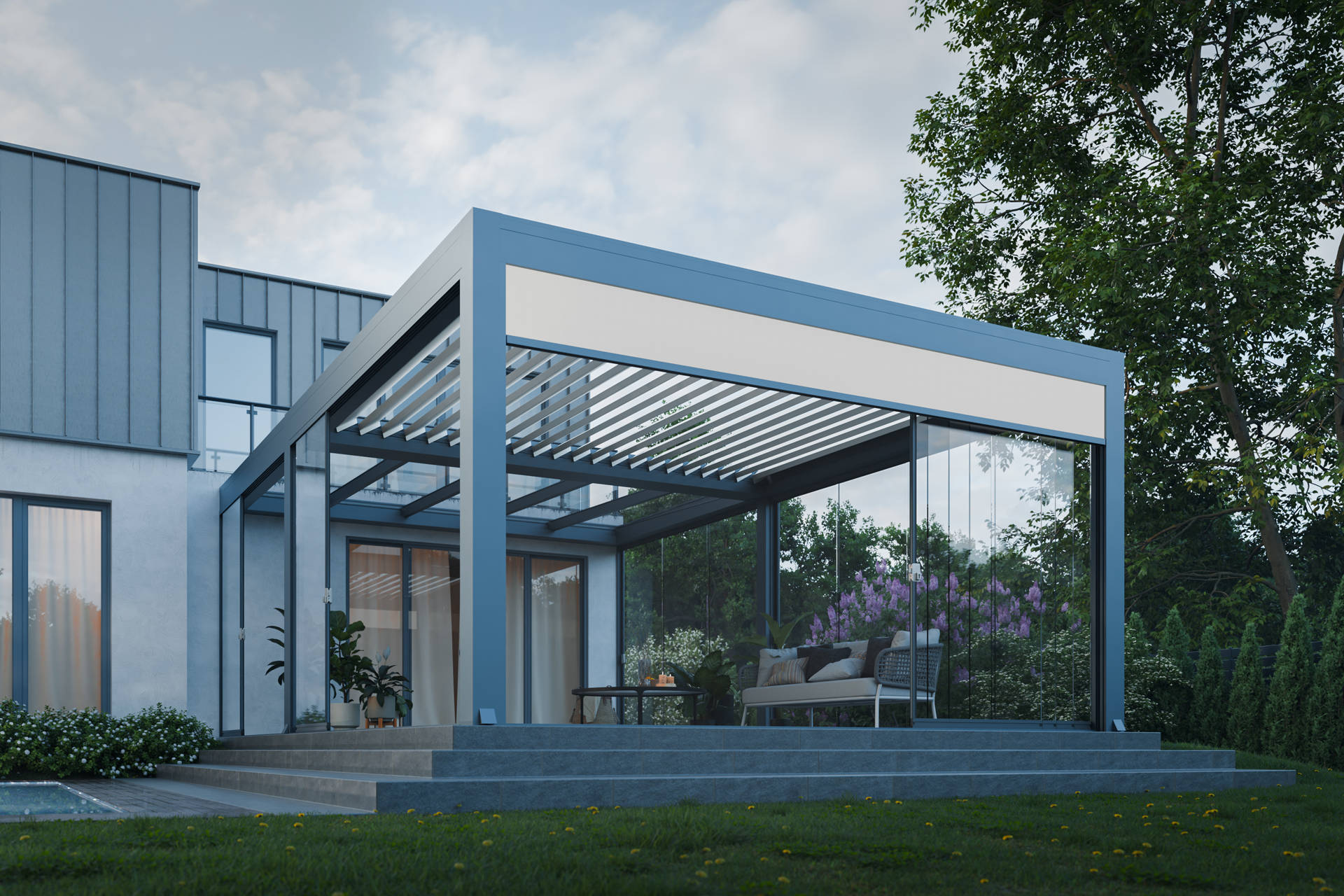

A glass module positioned alongside a louvred roof is a highly functional solution that combines the benefits of an opening roof with those of a fixed, transparent glass roof.

The Technic Pro louvred roof provides shade for the terrace and protection against rain. The Pro model also features integrated ZIP screens.

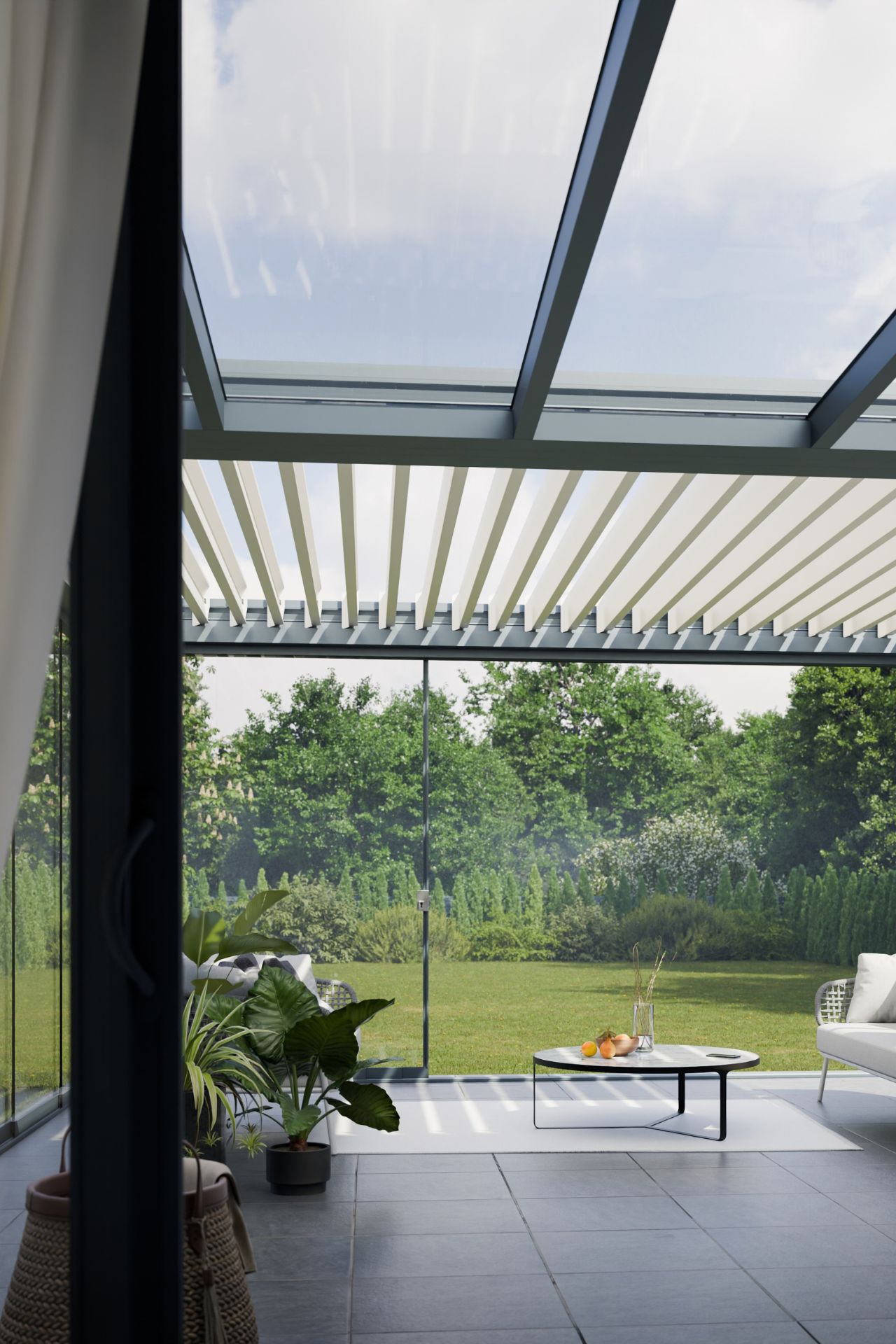

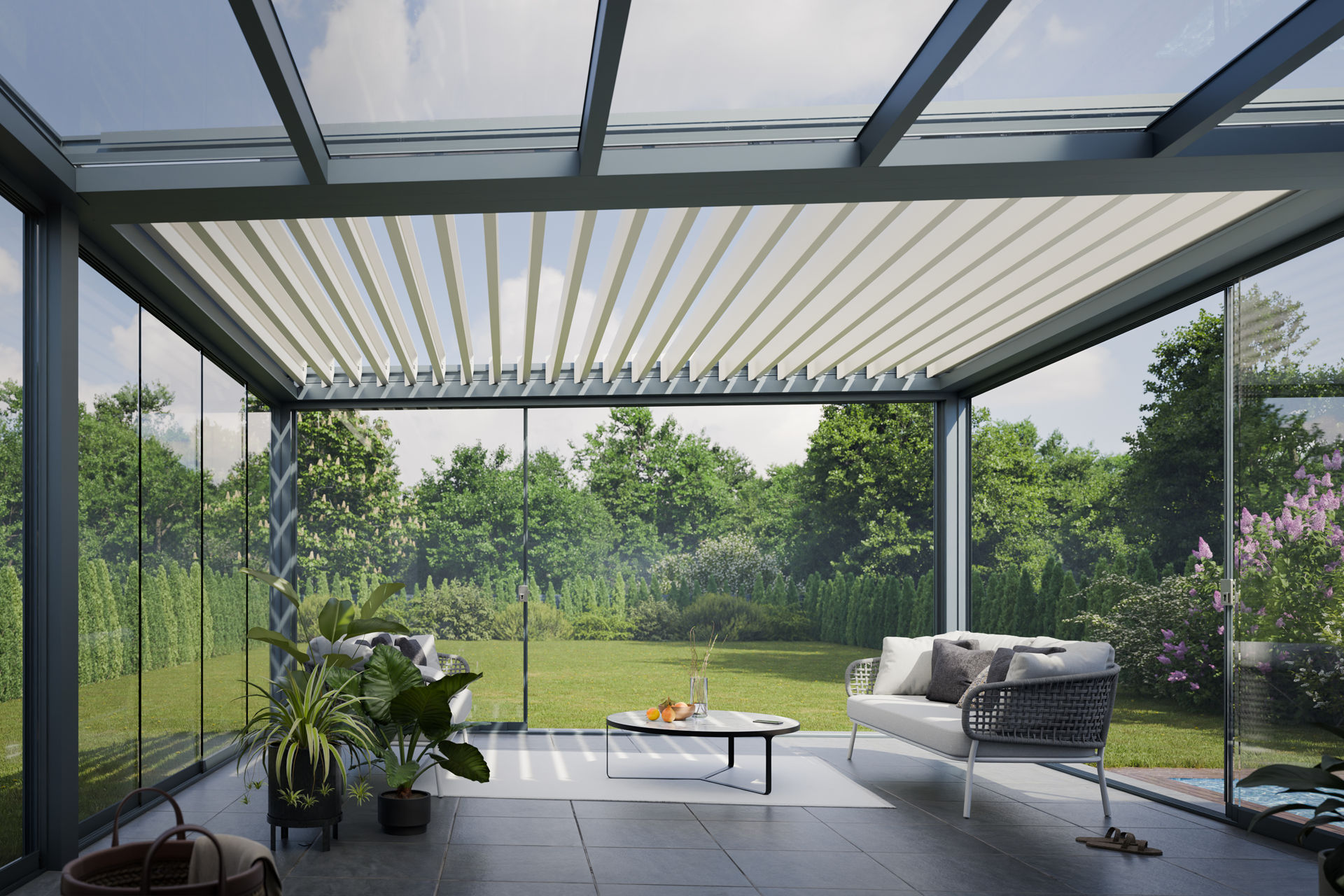

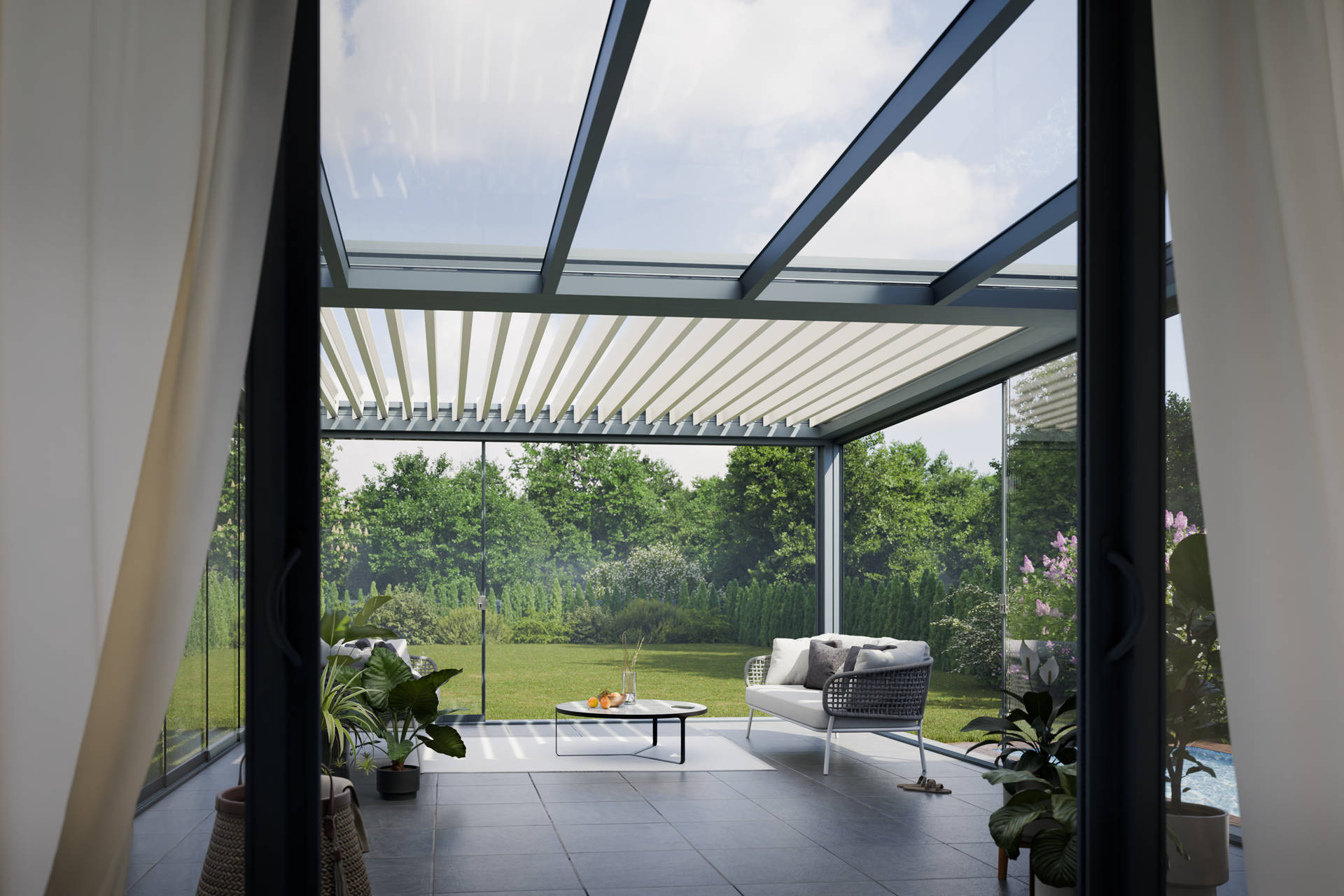

The glass roof allows maximum natural light to enter. It also provides protection against rain without shading the space below, allowing more daylight to reach selected areas of the terrace.
02

Key features

The glass roof allows maximum natural light to enter, making it an ideal solution for terraces where additional daylight is needed in selected areas.

All structural elements, including the posts, frame and roof louvres, are made of extruded aluminium and finished with powder coating.

When closed, the roof provides protection against rain.
The structure is equipped with an integrated drainage system.

The roof opens through rotating louvres. The angle of the louvres can be adjusted from 0 to 135 degrees, allowing for air circulation and letting in as much sunlight as needed at any given moment.

The chambered roof louvres help prevent excessive heat build-up on the terrace. The aluminium louvres provide complete shade, while the rotating roof allows you to control the amount of natural light entering the space.

A fixed glass roof with no opening option.
Provides a high level of natural light.
A great solution for terraces that need to be brightened.

The permissible snow load depends on the dimensions of the structure and the type of roof used in the module.

Glass Module: 110–175 kg/m²
Louvre module: 120–600 kg/m²

The structure is designed to withstand wind speeds of up to 120 km/h.

The roof can be controlled via remote control or a smartphone app.
The app allows you to operate the roof from anywhere (with internet access), set automation scenarios, and simulate presence at home (e.g. by turning on the terrace lighting).

04

Models

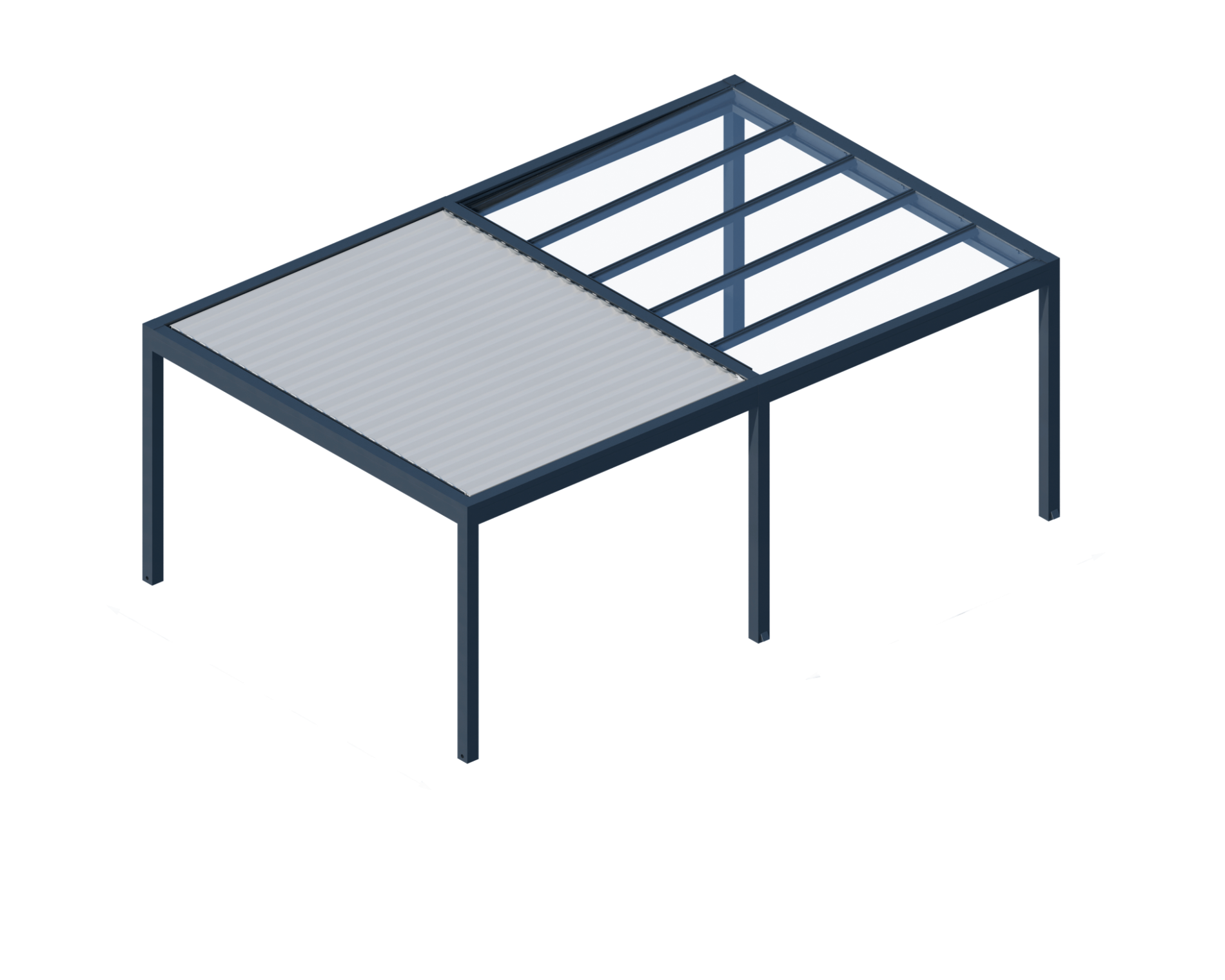

Pavilon

Free-standing pergola

A free-standing structure with no need to attach it to the building.

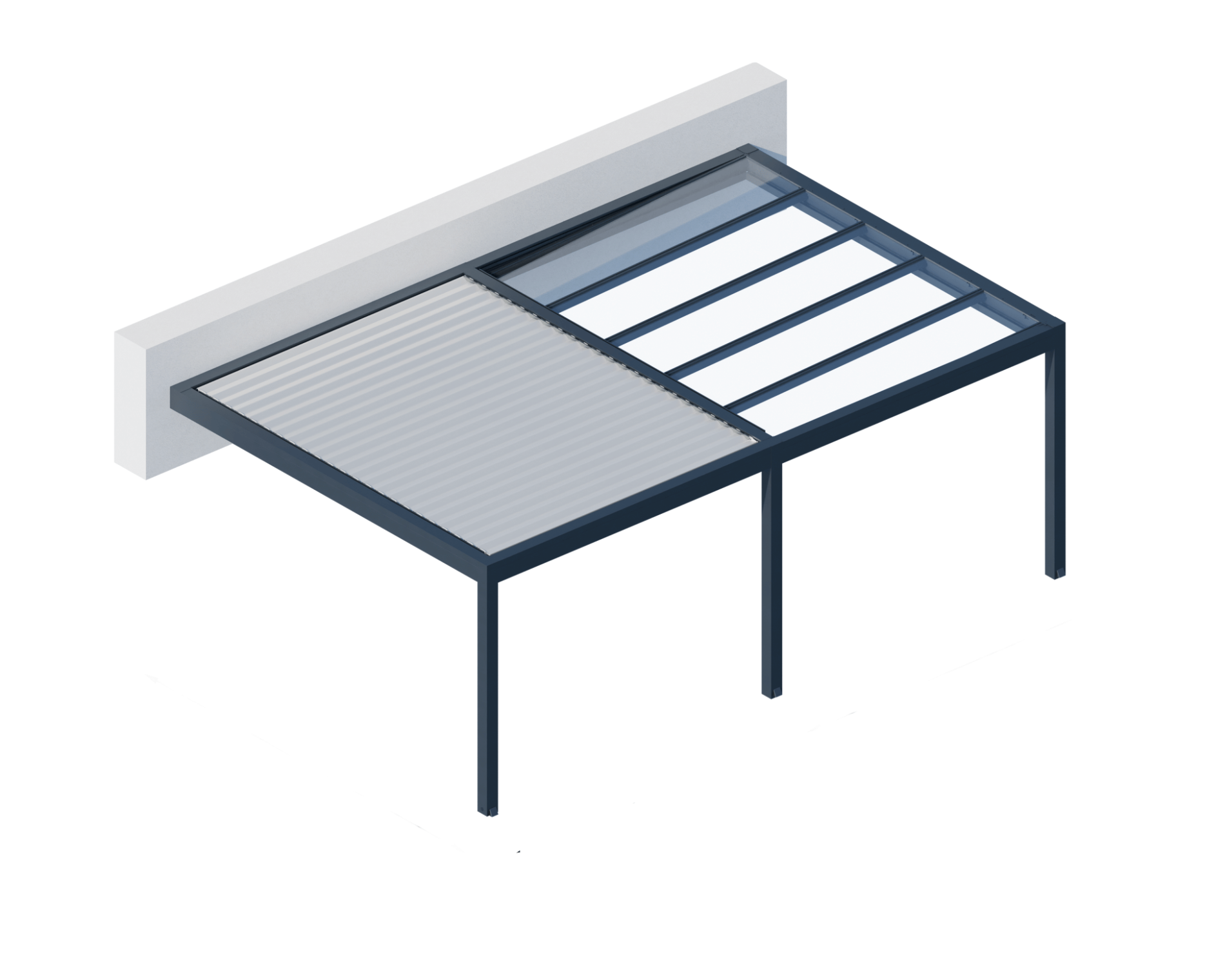

Gardena

Wall-mounted pergola: perpendicular louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged perpendicular to the wall.

Gardena

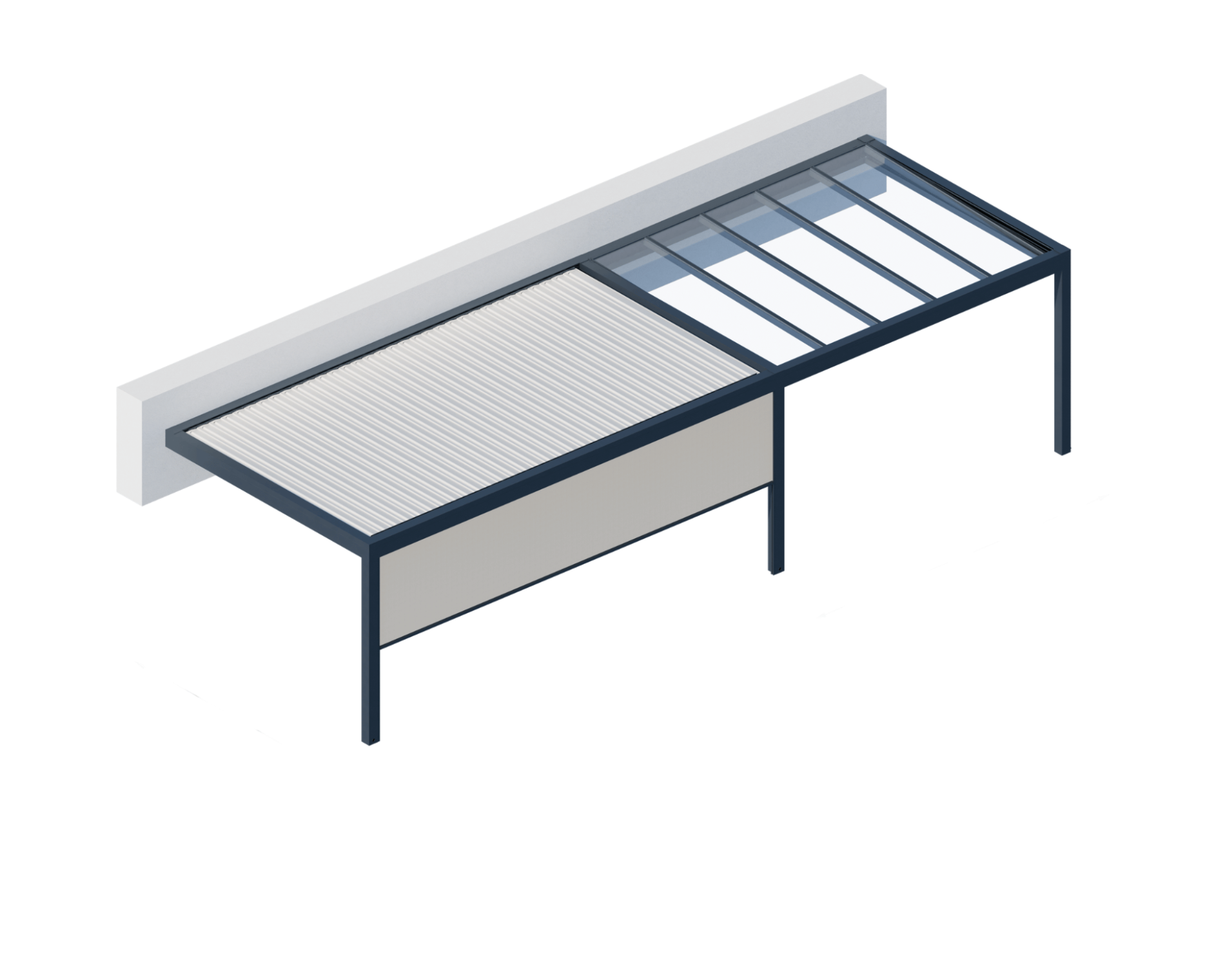

Wall-mounted pergola: parallel louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged parallel to the wall.

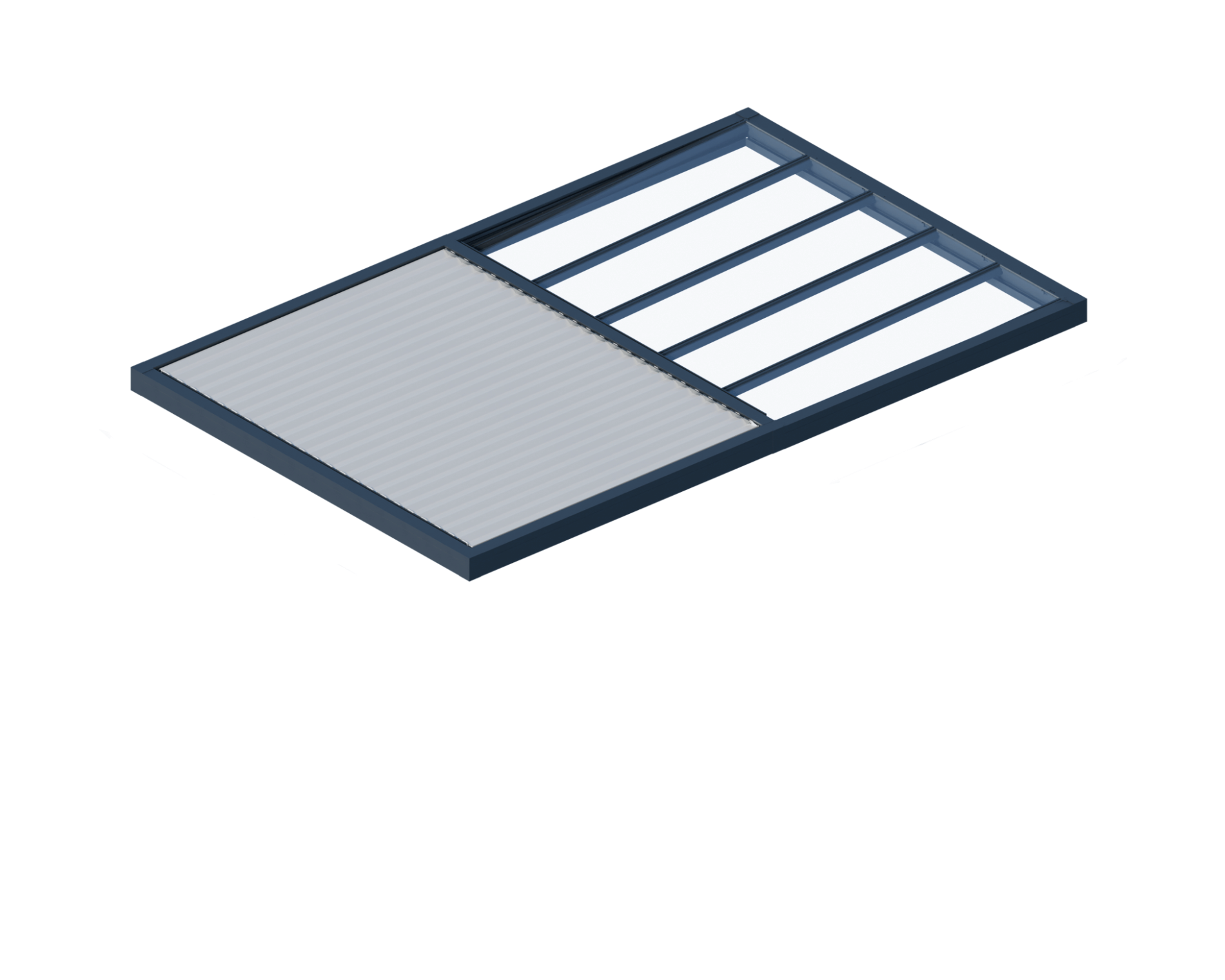

Tende

Wall-to-wall pergola

This structure is designed as a roof without supporting posts.
It is installed between walls, for example within a concrete or structural opening.

05

Dimensions

Variant 1

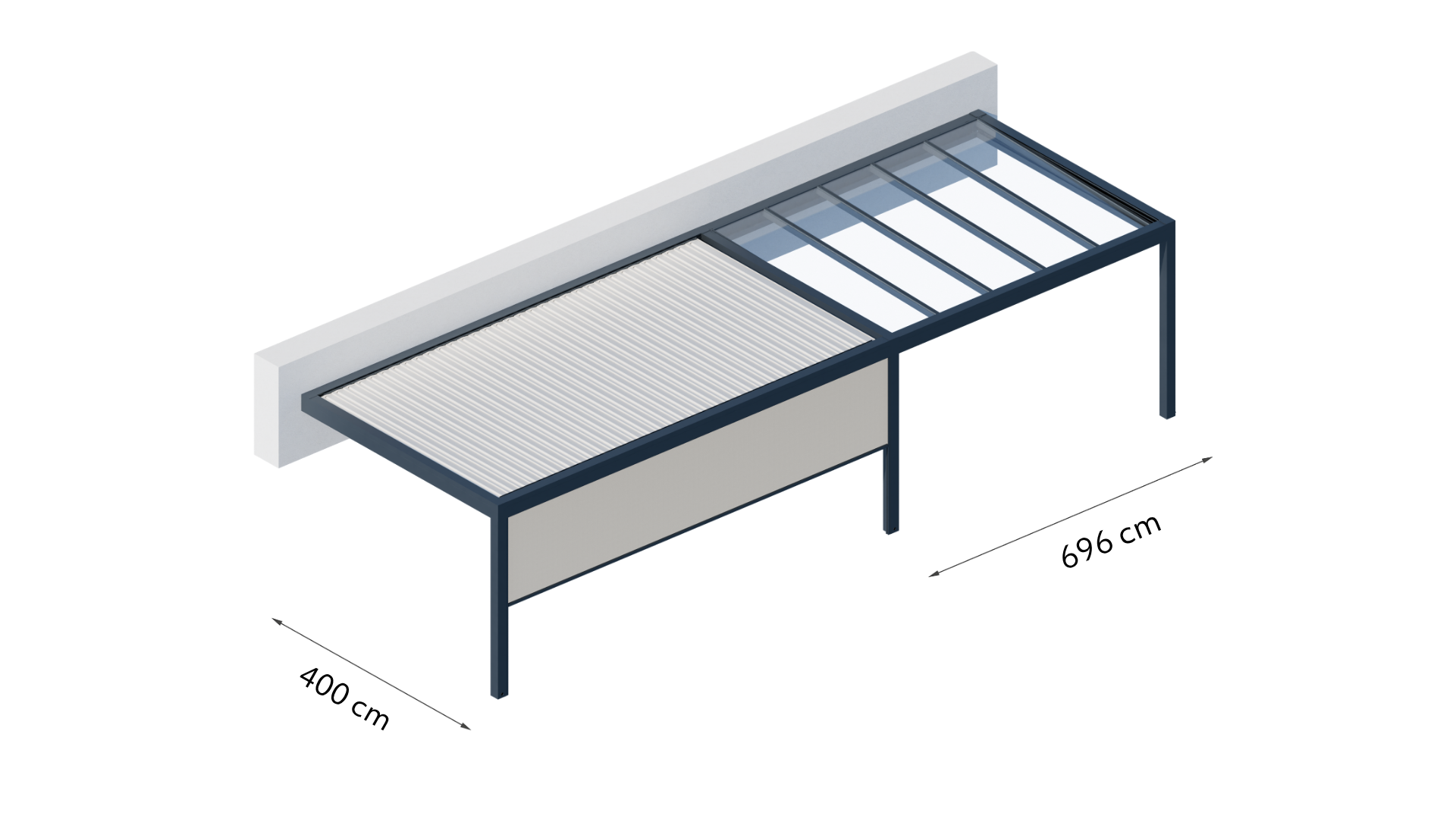

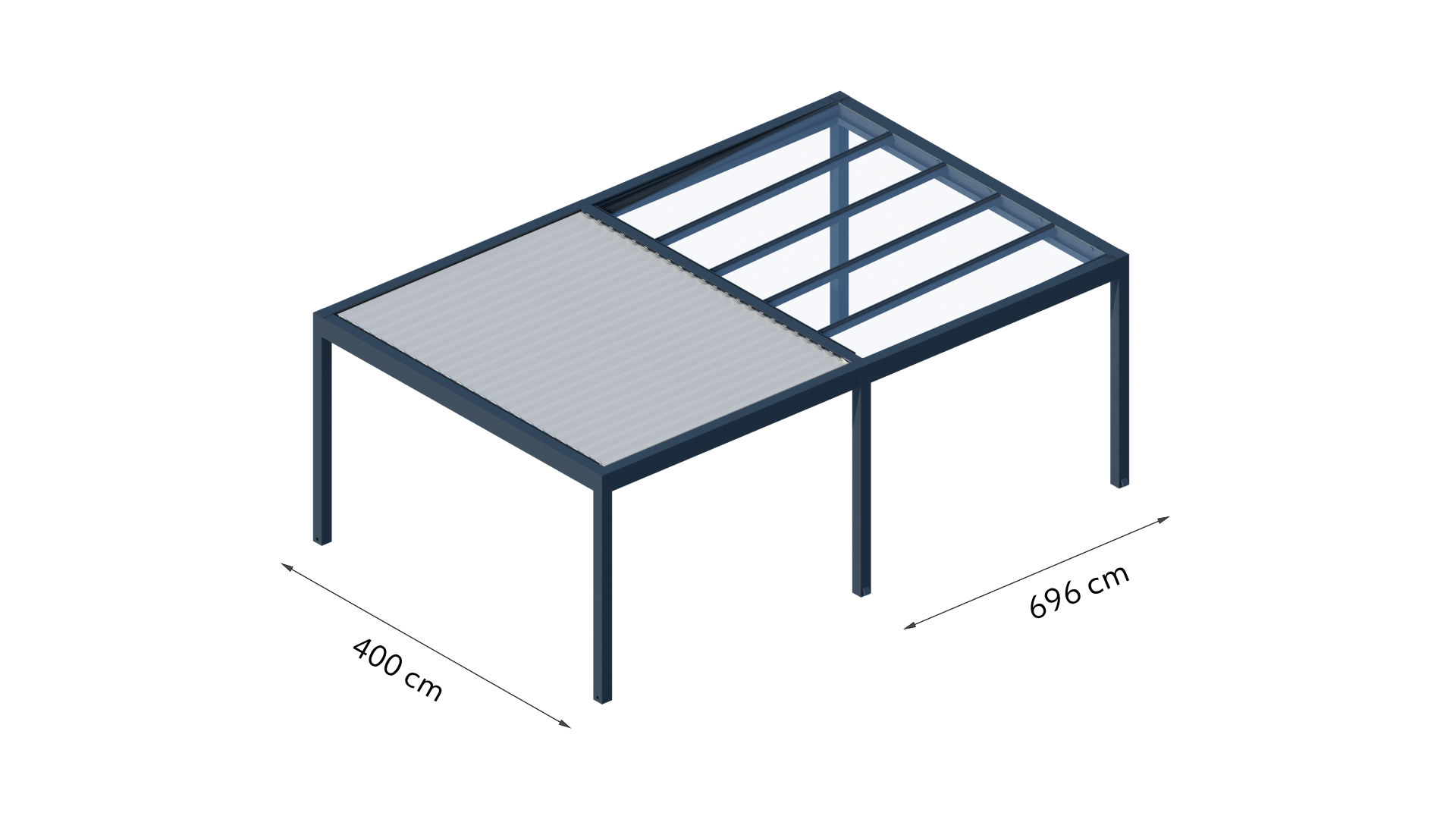

The maximum dimensions of a single module are 400 × 696 cm.

Dimensions

Variant 2
The maximum dimensions of a single module are 400 × 696 cm.

06

Available colours

Hybrid roofs

Glass Roof Module in Technic Pro

Explore the standard colours of the structure and roof (9010ST, 9007ST, 7016ST, 9005ST).
Custom finishes are also available, including any RAL colour, 3D Tiger Metallics, and wood-effect coatings.

Structure colour

Roof colour

07

Side enclosures

ZIP screens provide protection against excessive sunlight, wind, dirt and insects. They enhance privacy by shielding the terrace from neighbours’ view while maintaining visibility from inside. The ZIP locking system and guide inserts keep the fabric taut and securely in place within the guide rails, even during gusts of wind.

The Technic Pro featuring integrated ZIP screens with no additional cassette. The fabric extends directly from the pergola frame, giving the structure a sleek, elegant and modern appearance.

Shutters are sliding aluminium panels, ideal for enclosing terraces, balconies and loggias. They provide protection against sunlight and wind while enhancing privacy. The adjustable louvres allow you to control their angle, while the two-zone adjustment system offers precise control over the amount of sunlight entering the space.

Glazing systems provide effective protection against the elements without restricting natural light. Frameless glazing creates an almost invisible enclosure, preserving unobstructed views. These systems extend the outdoor living season from early spring to late autumn. The sliding panels can be easily opened or closed as needed.

The fixed panel is a versatile solution that can be used to partially or fully enclose the sides of a pergola. Made from high-quality aluminium, it provides effective protection against intense sunlight, wind and rain.

09

Configurator

Configure
your product

Personalise your dream pergola. Explore the available configurations and discover how you can create your perfect outdoor living space.
