Opening • Louvered • Retractable

Technic View

Bioclimatic louvered pergola with a retractable roof

01

Description

Technic View is a structure with a louvered roof, where a quiet scissor system slides the louvers to reveal the sky. The roof can be fully opened, closed, or stopped at any position. As the roof opens, the louvers rotate from a horizontal to a vertical position, then align parallel and slide to the side, forming a compact stack that occupies 25% of the roof area.

An advantage of this model is the ability to design the projection of the structure with precision down to 1 mm.

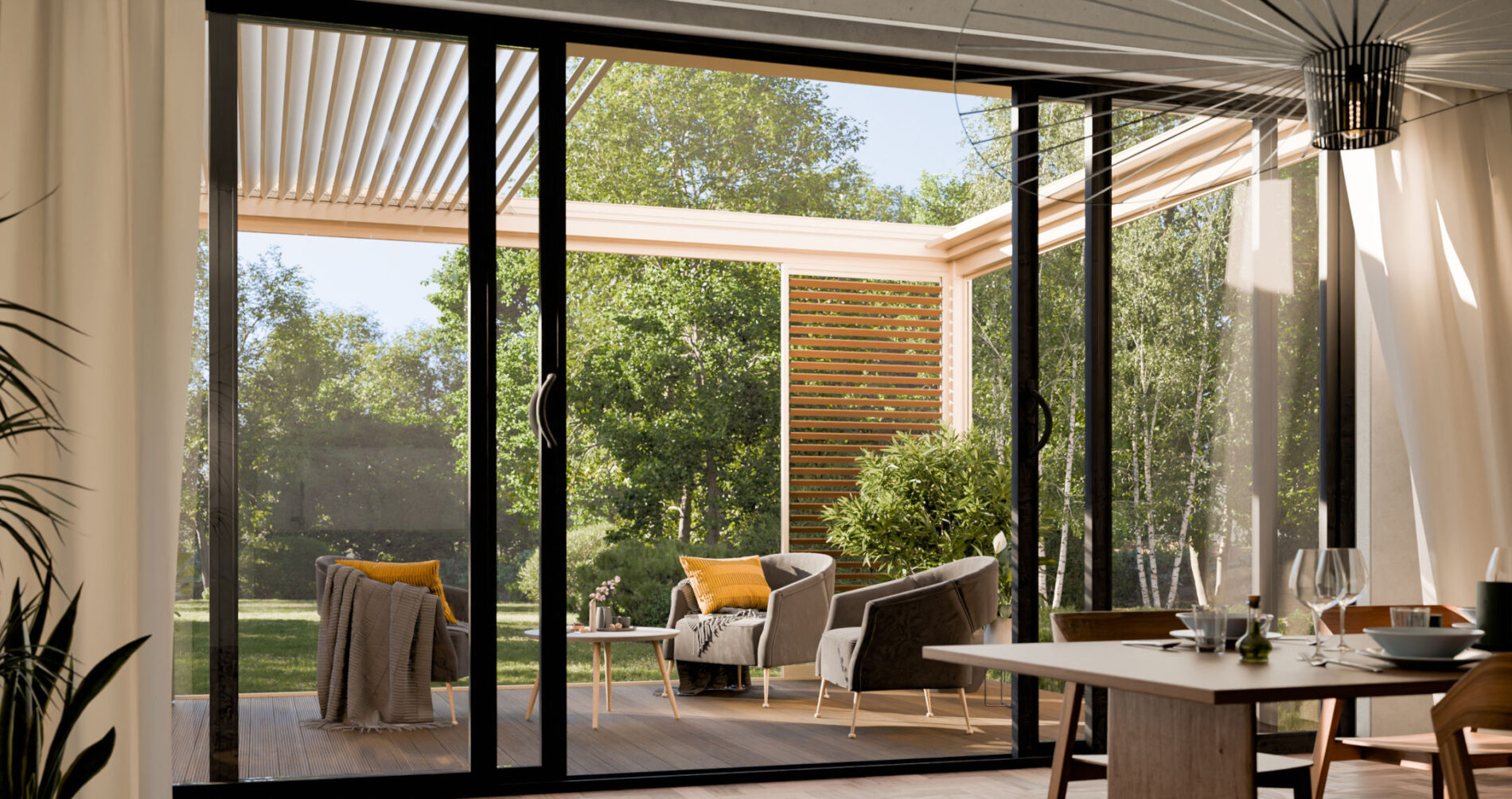

Watch product animation

Play video
02

Key features

All structural elements – posts, frame and roof louvres – are made of extruded aluminium and finished with powder coating.

When closed, the roof provides protection against rain.
The structure is equipped with an integrated drainage system.

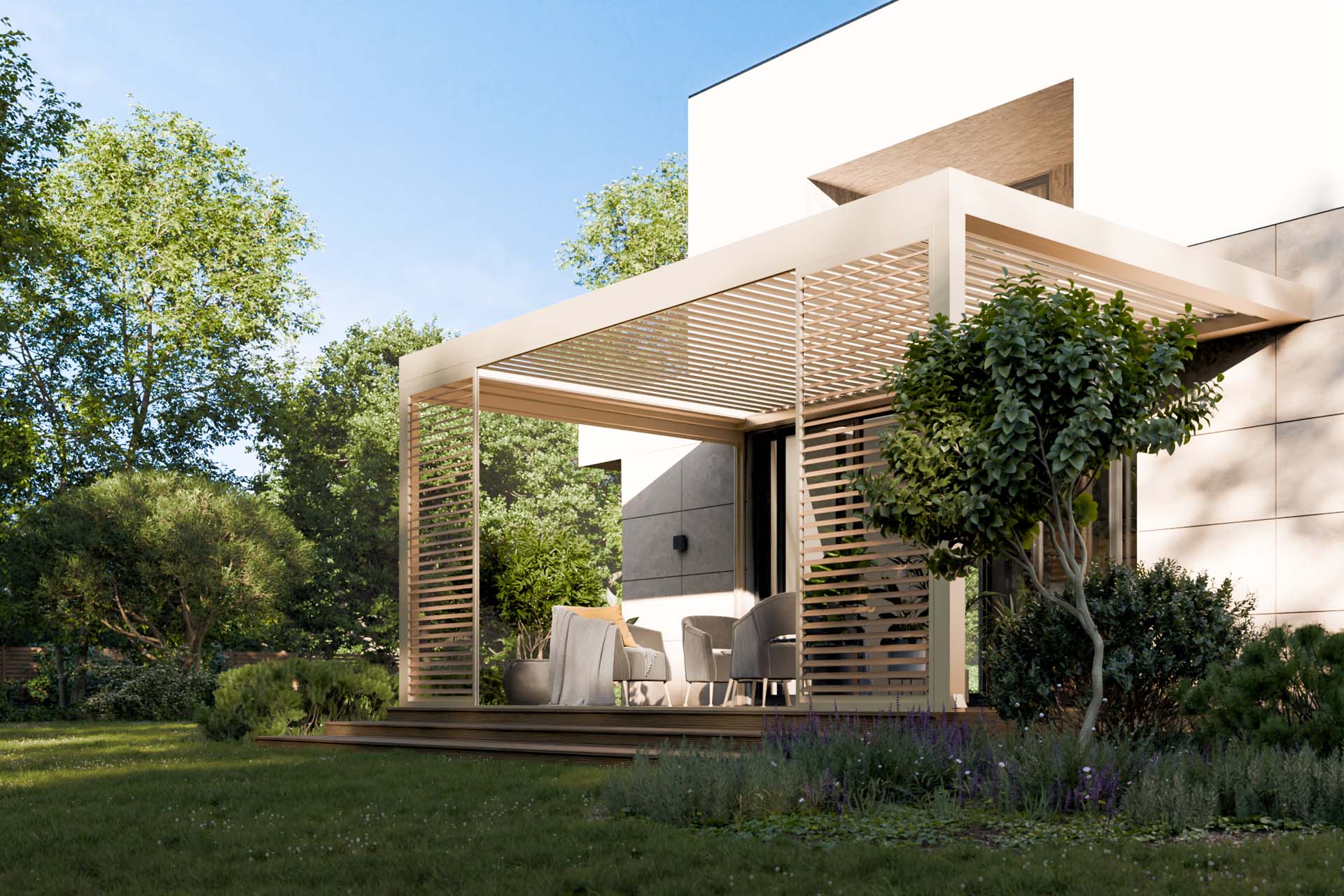

During opening, the louvres rotate from a horizontal to a vertical position.

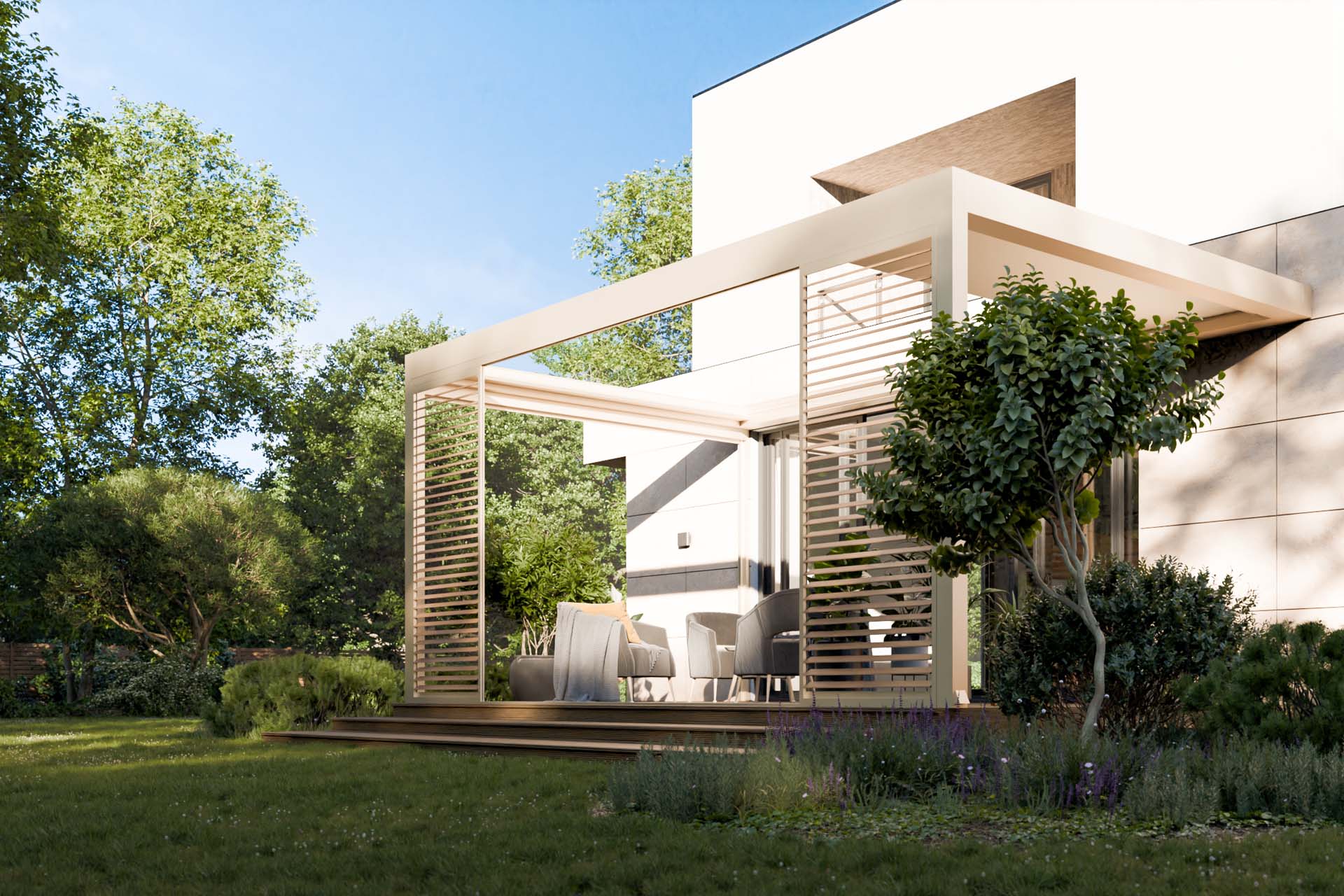

They align parallel and slide to the side, forming a compact stack that occupies only 25% of the roof area.

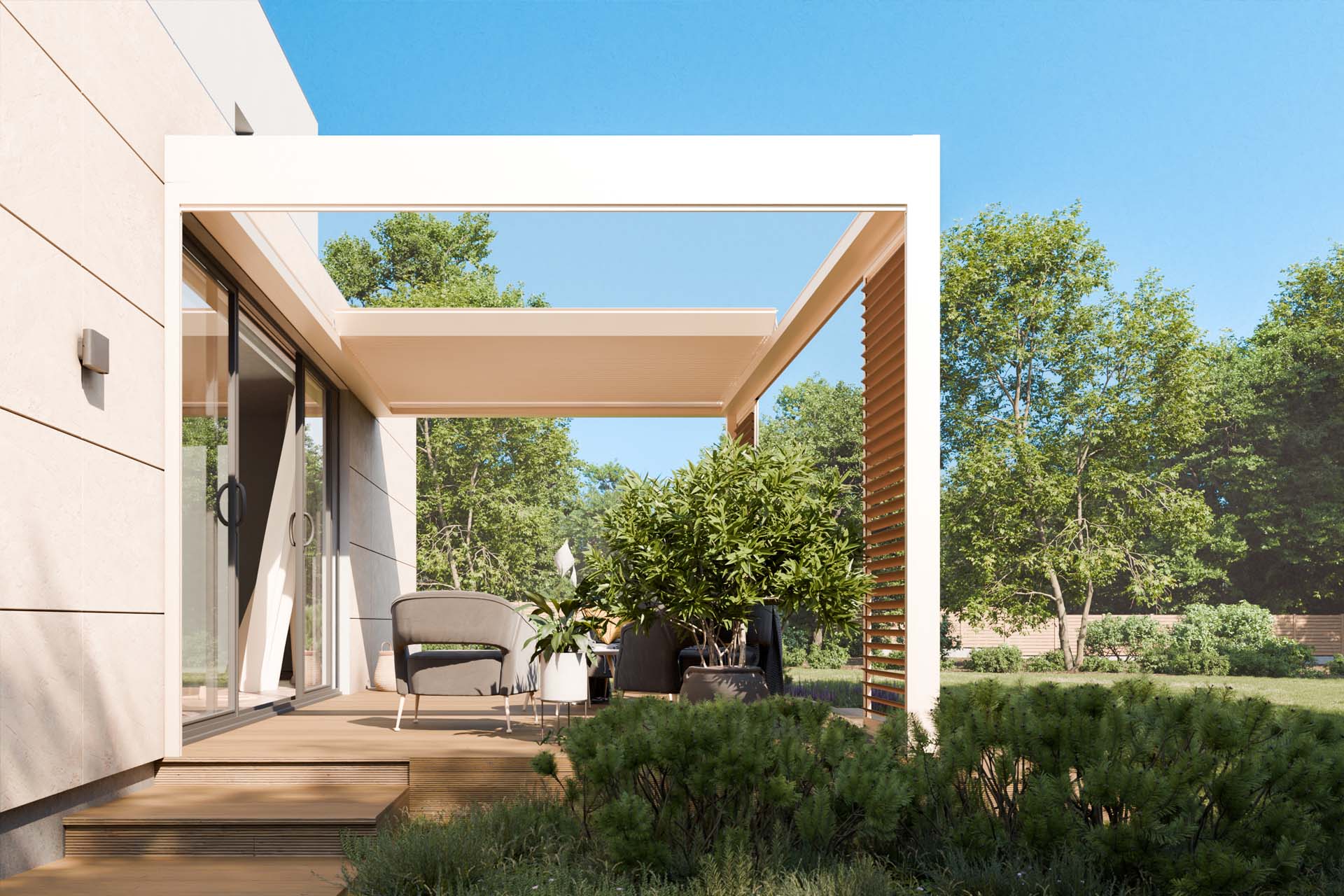

When open, the roof allows natural air circulation and lets in as much sunlight as needed.
When closed, it protects against overheating, rain and snow.

This model allows for unlimited expansion, including non-standard layouts such as L-shaped terraces. Additional modules can be connected seamlessly, with only a single profile between them. This ensures a clean, aesthetic design while reducing the amount of aluminium used.

The chambered aluminium louvres protect the terrace from excessive heat buildup.
They provide effective shading, while the retractable roof allows precise control of incoming light.

Snow load capacity depends on the size of the structure. Depending on the module dimensions, it ranges from 120 to 600 kg/m².

The structure is designed to withstand wind speeds of up to 160 km/h.

The roof can be controlled via remote control or a smartphone app.
The app allows you to operate the roof from anywhere (with internet access), set automation scenarios, and simulate presence at home (e.g. by turning on the terrace lighting).

04

Models

Pavilion

Free-standing pergola

A free-standing structure with no need to attach it to the building.
In the single-module version, the terrace roofing is supported by four posts.

Gardena

Wall-mounted pergola – perpendicular louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged perpendicular to the wall.
In the single-module version, the structure is supported by two posts.

Gardena

Wall-mounted pergola – parallel louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged parallel to the wall.
In the single-module version, the structure is supported by two posts.

Tende

Wall-to-wall pergola

This structure is designed as a pergola without supporting posts.
It is installed between walls, for example within a concrete or structural opening.

05

Dimensions

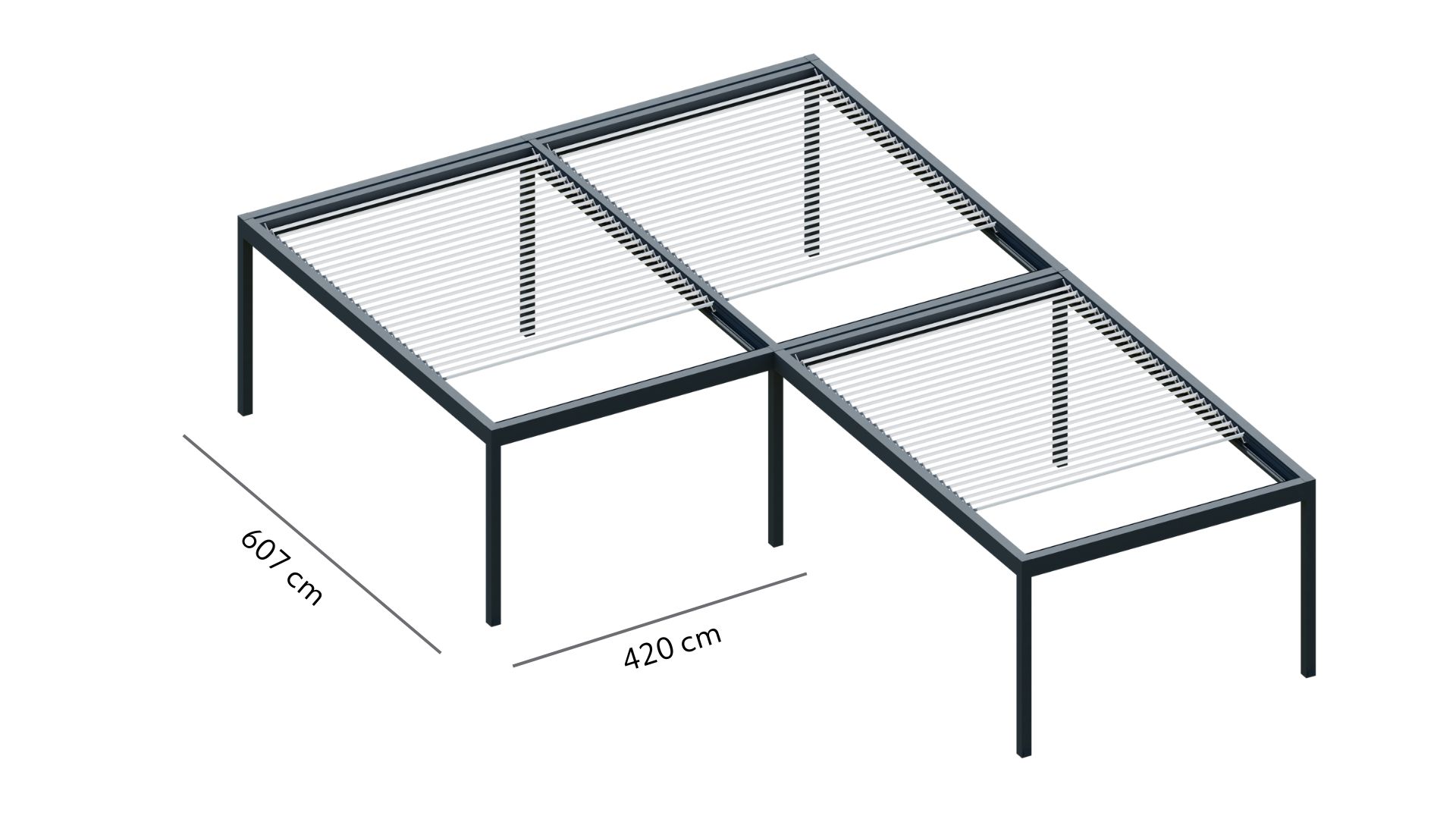

Maximum size of a single module: 420 × 607 cm.

By adding additional modules on each side, you can cover virtually any area.
Importantly, only one support post is used between modules.

06

Available colours

Opening • Louvered • Retractable

Technic View

Explore the standard colours of the structure and roof (9010ST, 9007ST, 7016ST, 9005ST).
Custom finishes are also available, including any RAL colour, 3D Tiger Metallics, and wood-effect coatings.

Structure colour

Roof colour

07

Side enclosures

ZIP screens protect against excessive sunlight, wind, dirt and insects.
They provide privacy and act as a visual barrier from the outside, while still maintaining visibility from the inside.
The ZIP locking system and guide inserts ensure proper fabric tension and keep it securely in the guide-rails even in strong wind conditions.

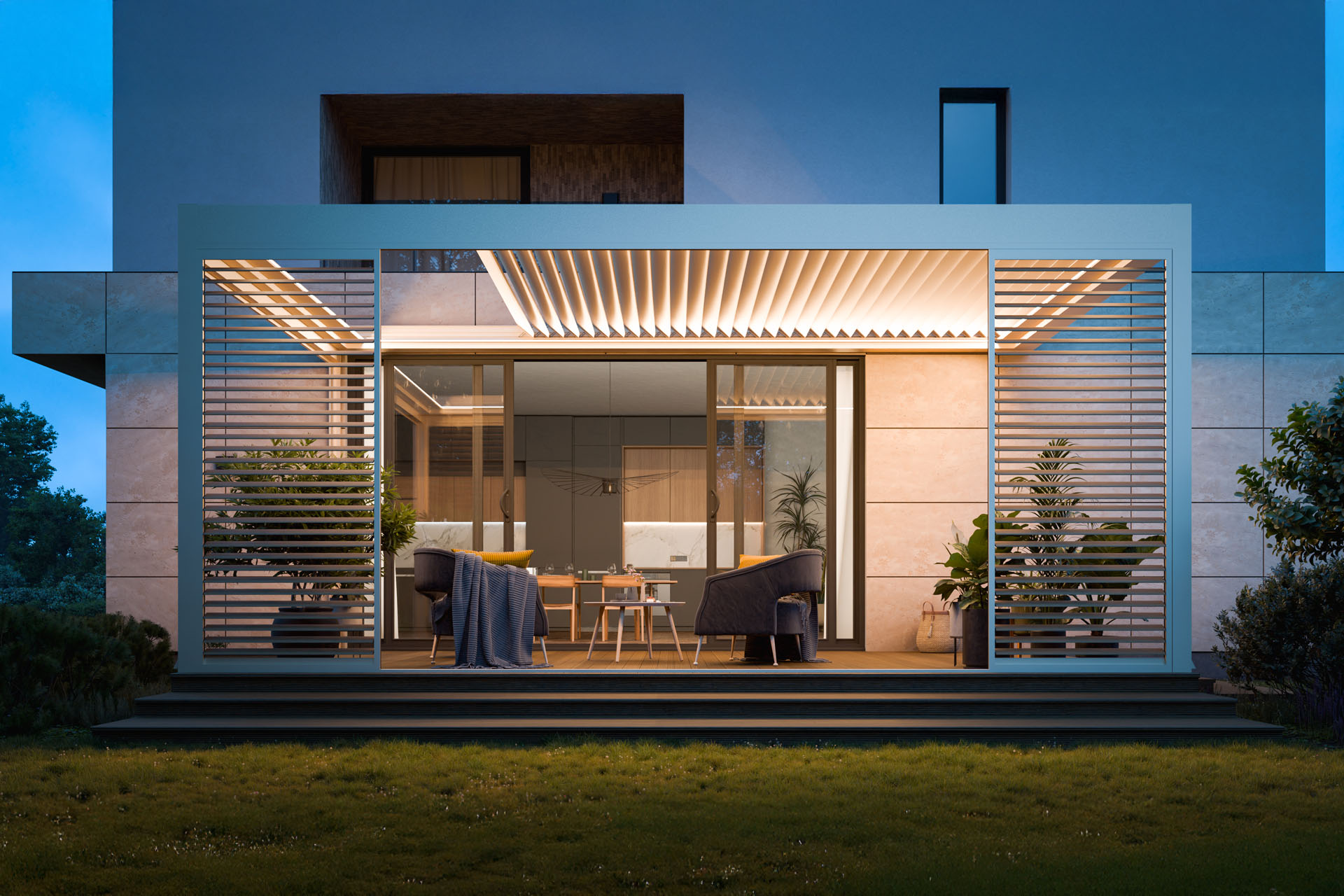

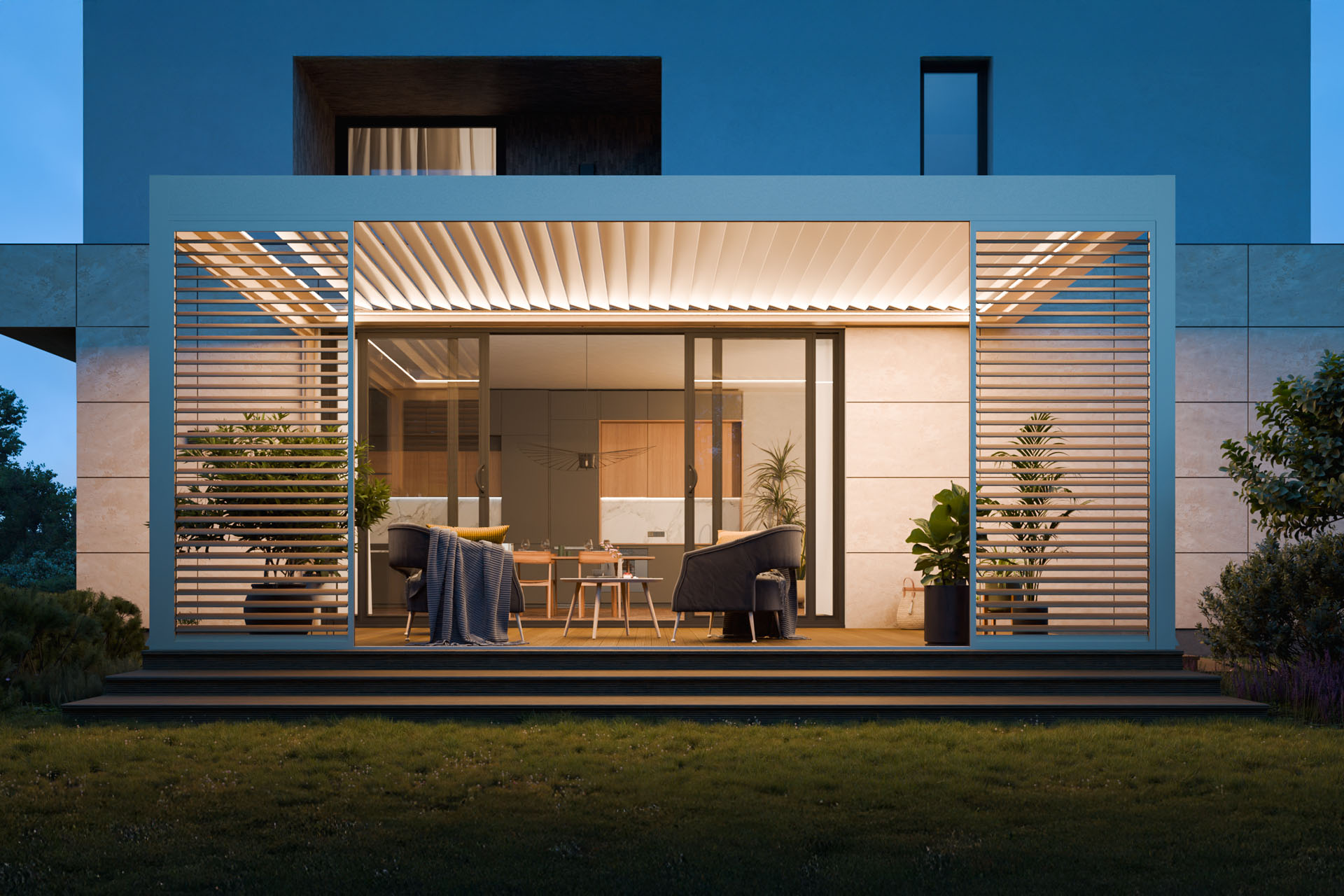

Aluminium sliding shutters designed for terraces, balconies and outdoor spaces.
They provide protection from sun and wind, while ensuring privacy and airflow.
Adjustable louvres allow you to control the angle of sunlight, while the dual-zone design gives you full control over light and shade.

Glass enclosures protect against weather conditions without limiting natural light.
In frameless systems, they create an almost invisible barrier while maintaining a clean design.
Extend your outdoor season from early spring to late autumn.
Sliding panels can be easily opened or closed depending on your needs.

A fixed wall panel is a versatile solution that can be used as both partial and full enclosure of the structure. Made of high-quality aluminium, its main function is to provide protection against intense sunlight, wind and rain.


09

Compare

Compare products

Select products you want to compare

No data available for the selected products.
Product

10

Configurator

Configure your product

Customise your ideal pergola.
Explore available options and create a space tailored to your needs.

CONTACT

Get in touch with us

    Contact form

    The maximum file size is 5 MB.
    Allowed file formats are JPG, PNG, and PDF.

    After reviewing the Privacy Policy, I declare that:
    Tarasola customers value the high quality of our products, refined design and well-thought-out solutions that make everyday outdoor living more comfortable.

    Yes, Technic View is designed to withstand snow loads. Its aluminium structure and solid connections ensure durability.

    Tarasola Technic View provides effective protection from excessive sun in summer and snow in winter.

    In the Tarasola Technic View, the louvers slide. When opening the roof, the louvers begin to rotate from a horizontal to a vertical position. They then align parallel and move to the side, forming a compact stack that occupies 25% of the total roof area.
