Opening • Louvered • Retractable

Technic View Pro

Bioclimatic louvered pergola with a retractable roof and integrated ZIP screen

01

Description

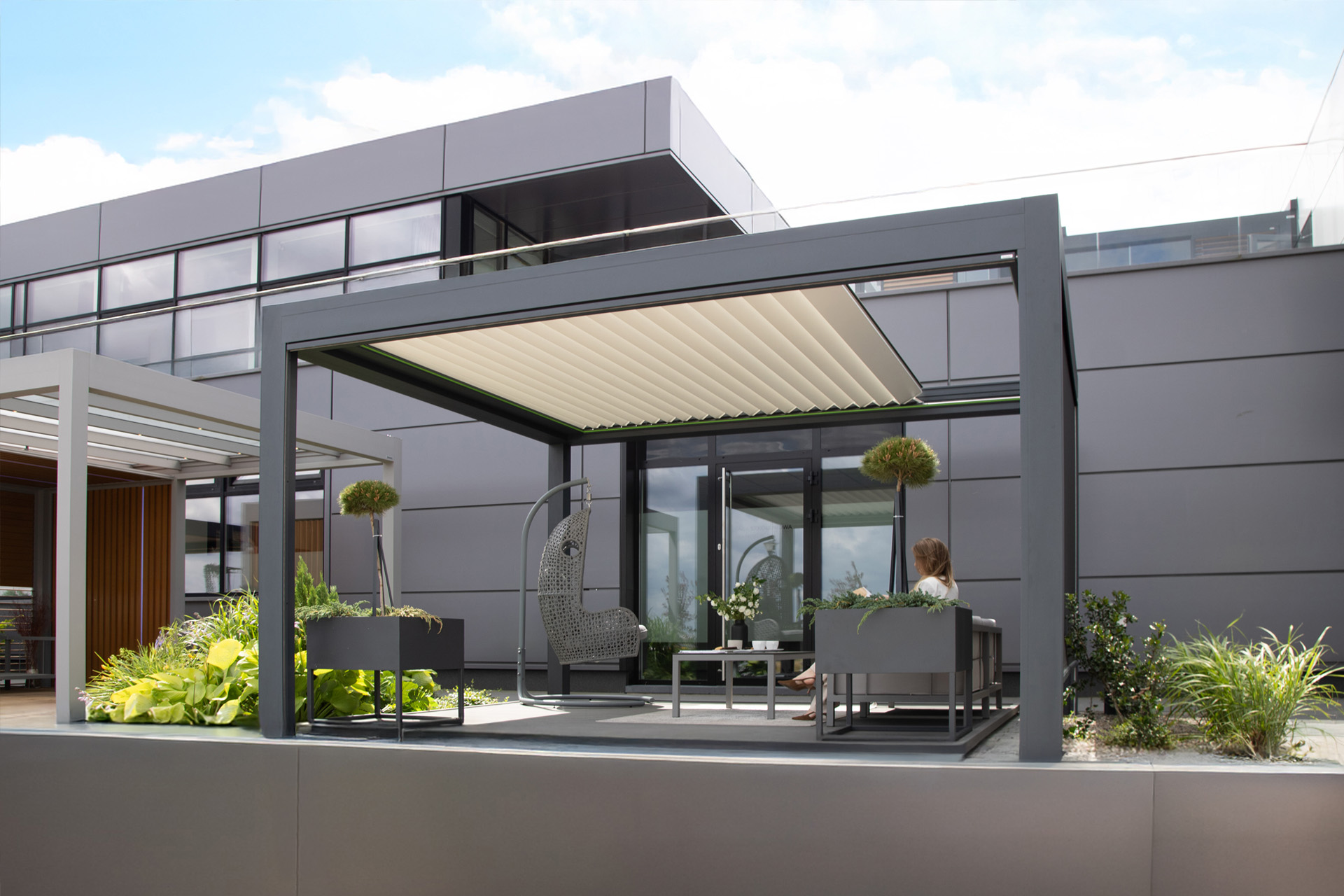

Technic View Pro is a louvered roof structure featuring a quiet scissor system that smoothly retracts the louvres to open the roof to the sky.
The roof can be fully opened, fully closed or stopped at any position.

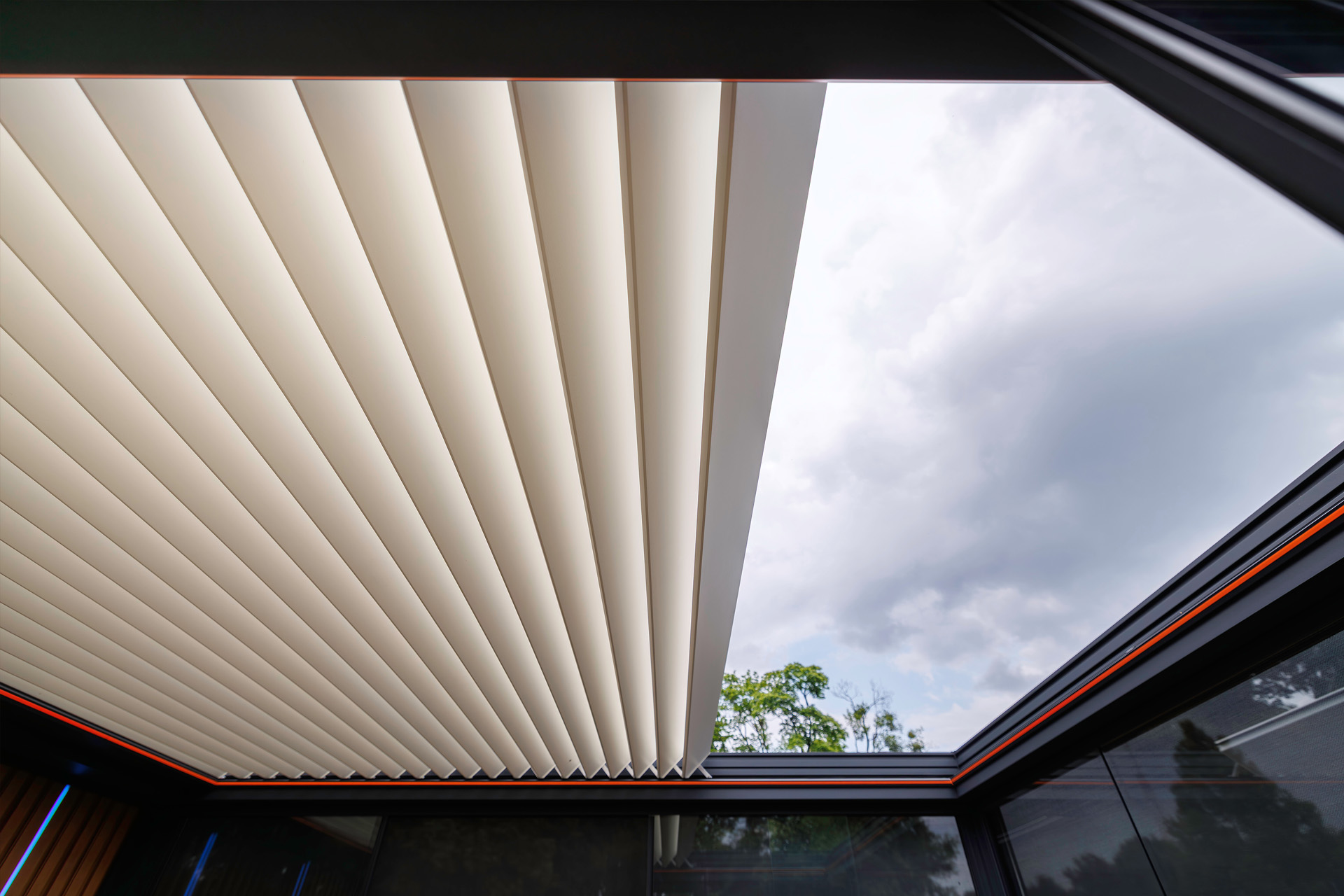

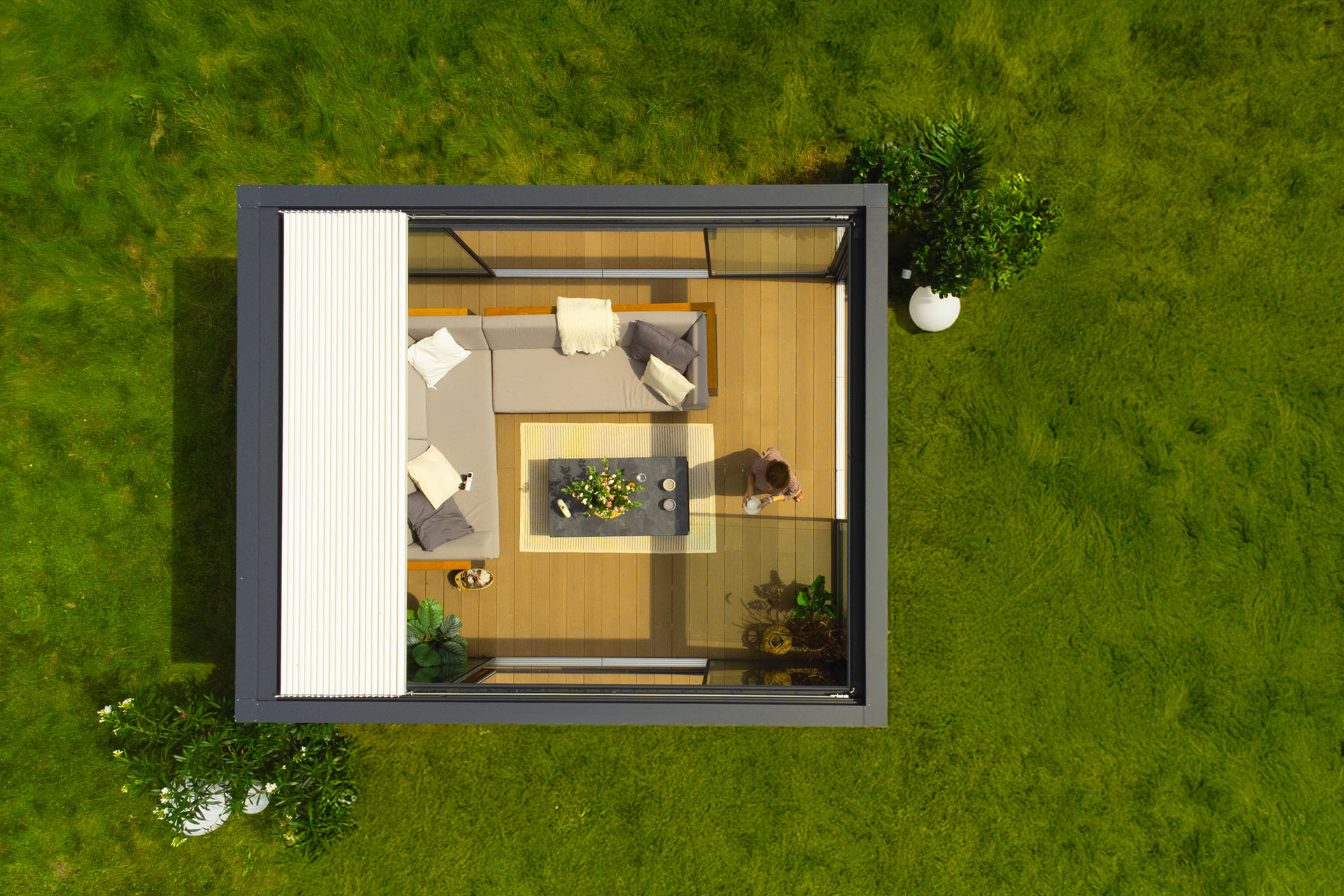

During opening, the louvres rotate from a horizontal to a vertical position, then align parallel and slide to the side, forming a compact stack that occupies only 25% of the roof area.
The Technic View Pro version includes an integrated ZIP screen system.
A key advantage of this model is the ability to design the projection with precision down to 1 mm.

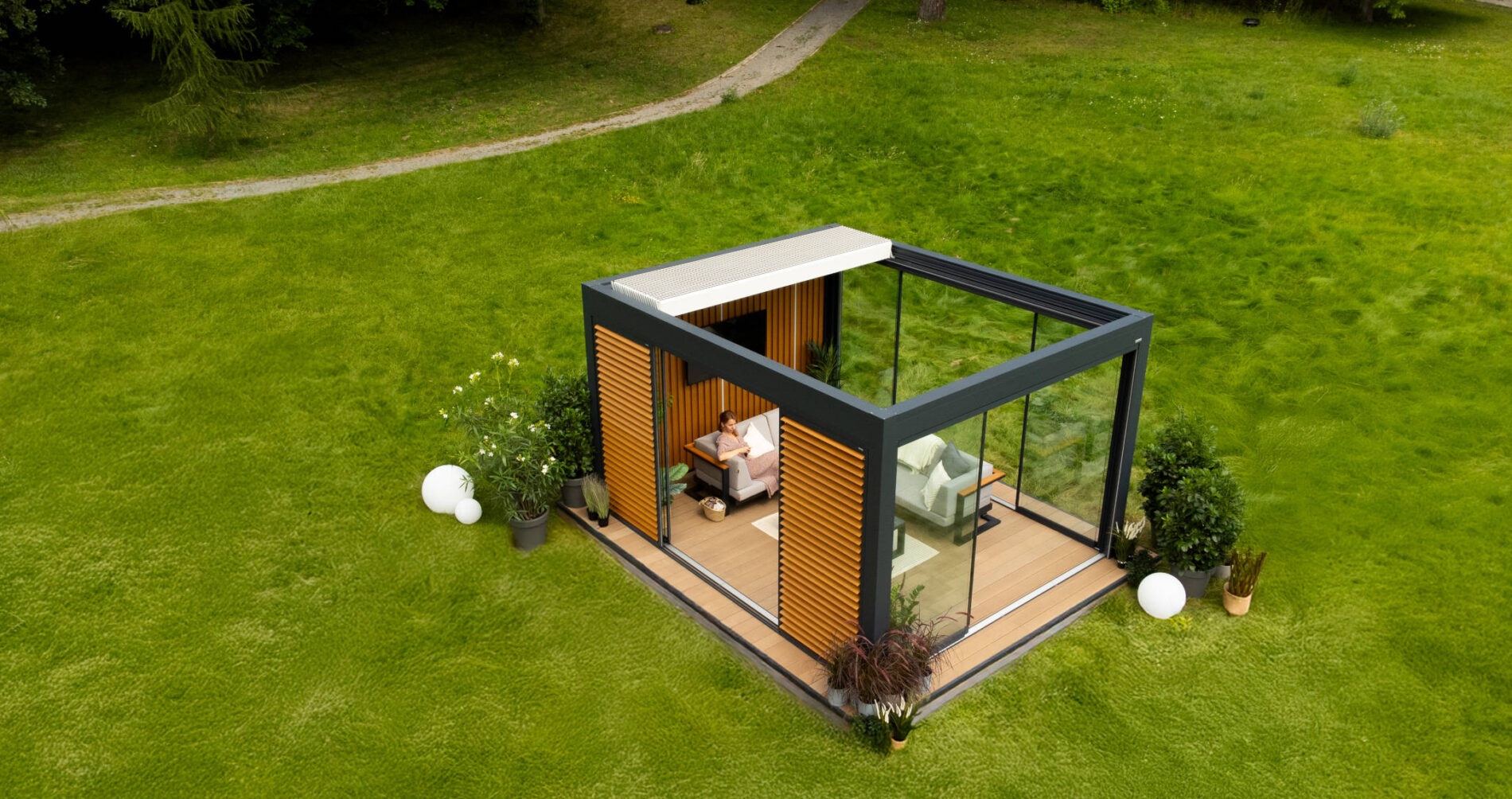

Watch the video

Play video
02

Key features

The integrated ZIP screen does not require an additional cassette.
The fabric extends directly from the structure frame, resulting in a clean and modern design.

All structural elements – posts, frame and roof louvres – are made of extruded aluminium and finished with powder coating.

When closed, the roof provides protection against rain.
The structure is equipped with an integrated drainage system.

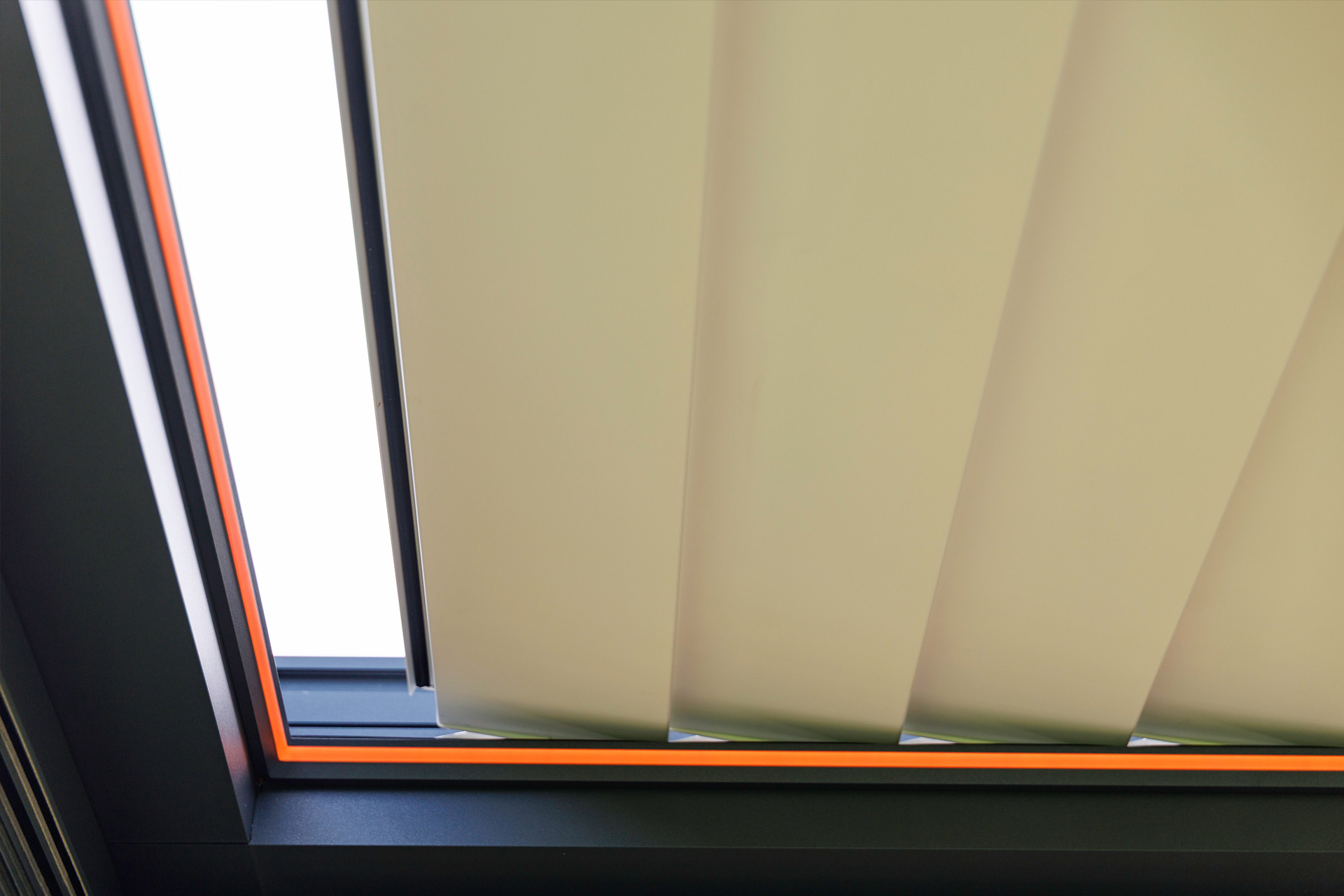

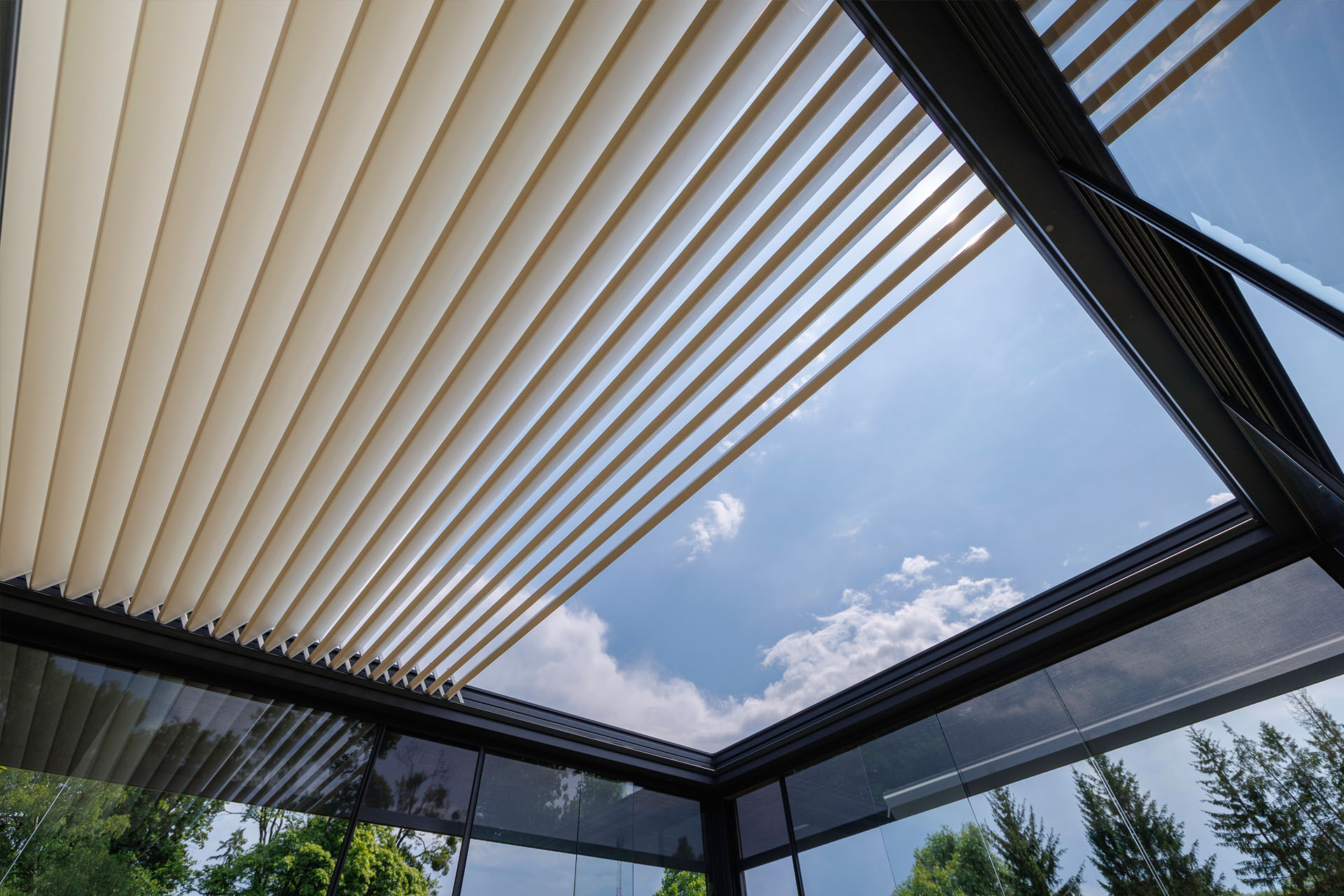

During opening, the louvres rotate from a horizontal to a vertical position.
They align parallel and slide to the side, forming a compact stack that occupies only 25% of the roof area.
When open, the roof allows natural air circulation and lets in as much sunlight as needed.
When closed, it protects against overheating, rain and snow.

This model allows unlimited expansion.
Additional modules can be connected seamlessly, with only a single profile between them.
This results in a clean, aesthetic design while reducing the amount of aluminium used.

The chambered aluminium louvres protect the terrace from excessive heat buildup.
They provide effective shading, while the retractable roof allows precise control of incoming light.

Snow load capacity depends on the size of the structure and ranges from 120 to 600 kg/m².

The structure is designed to withstand wind speeds of up to 160 km/h.

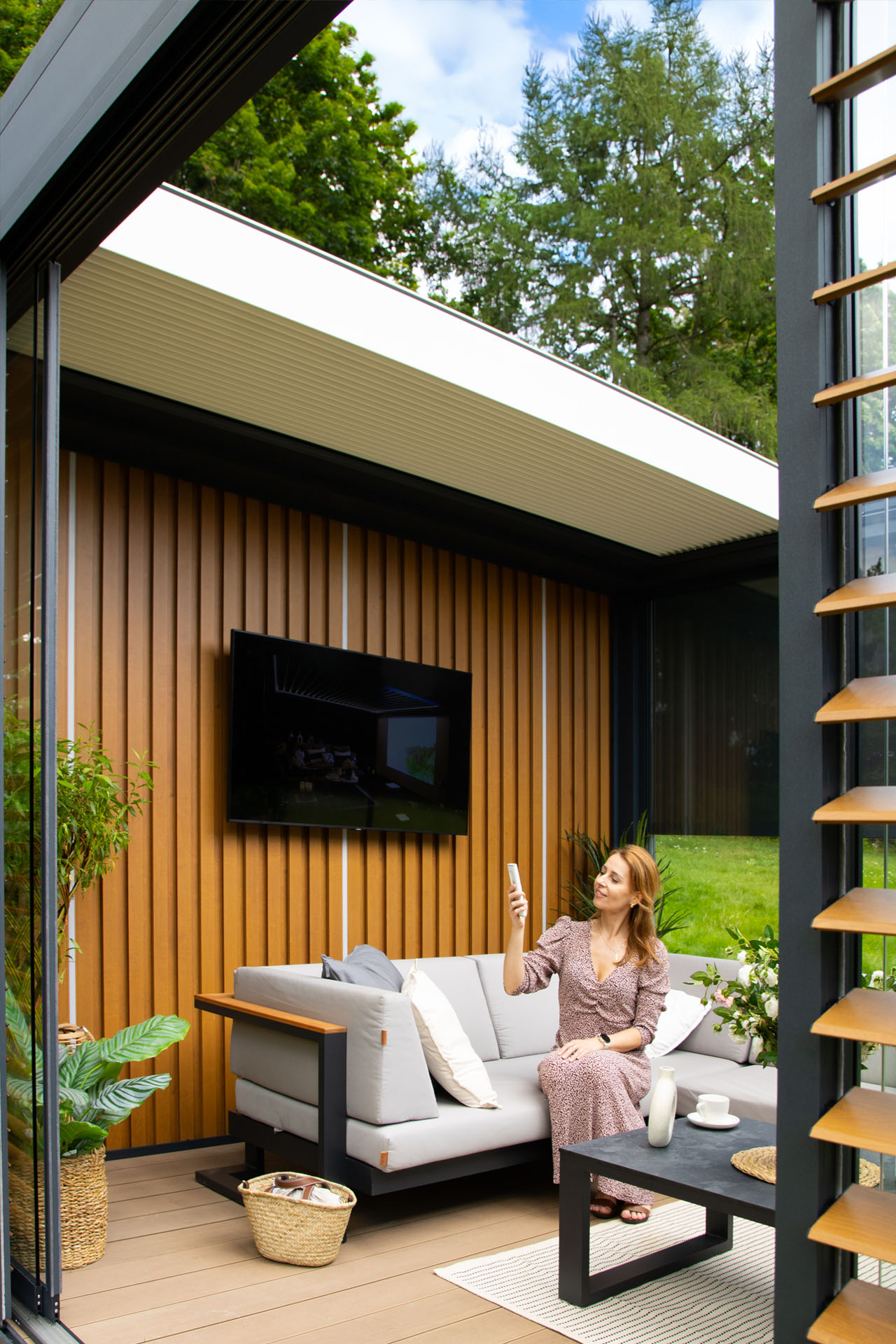

The roof can be controlled via remote control or a smartphone app.
The app allows you to operate the roof from anywhere (with internet access), set automation scenarios, and simulate presence at home (e.g. by turning on the terrace lighting).

04

Models

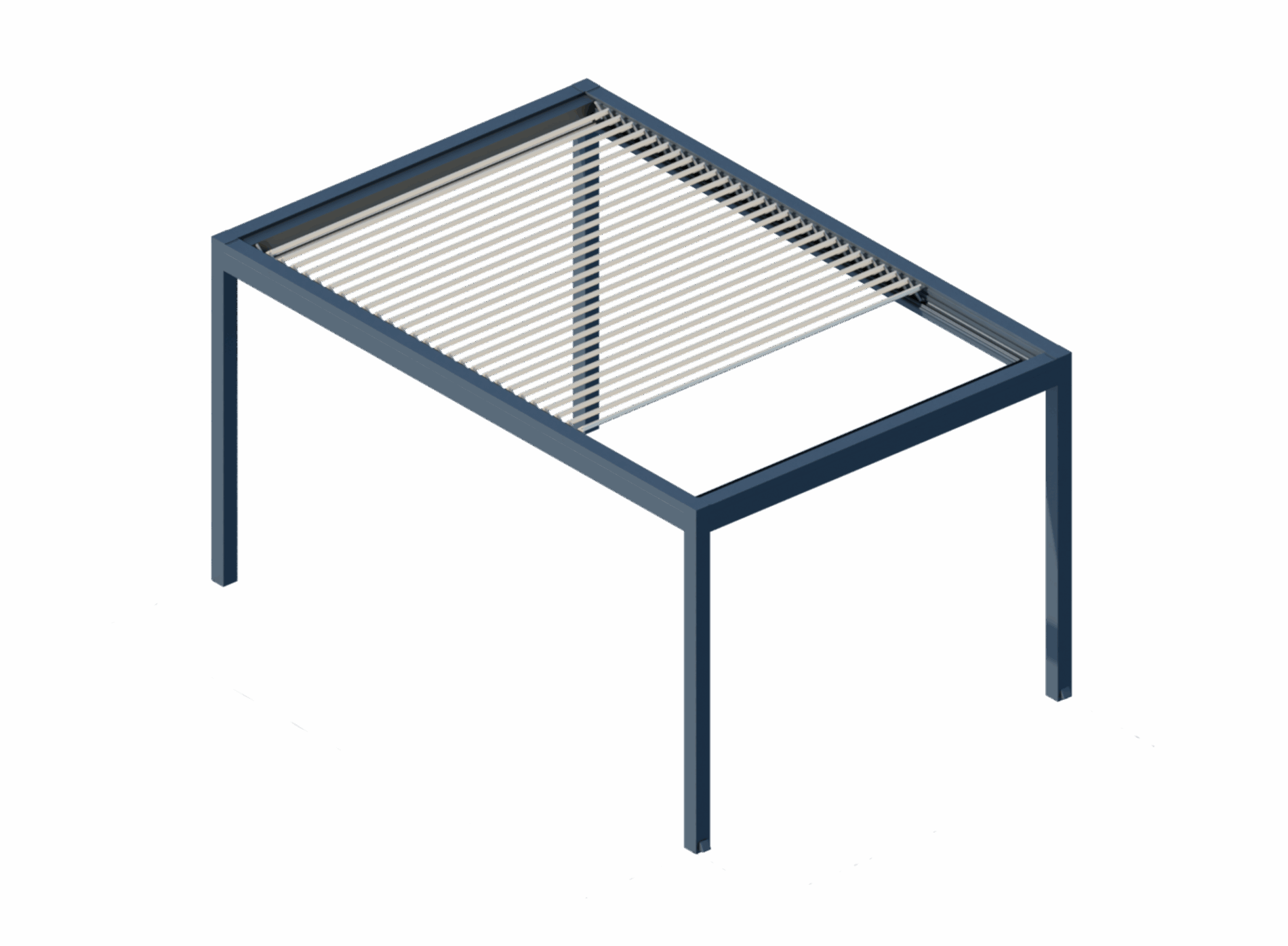

Pavilion

Free-standing pergola

Freestanding structure with no need to attach to the building.
In a single-module version, the pergola is supported by four posts.

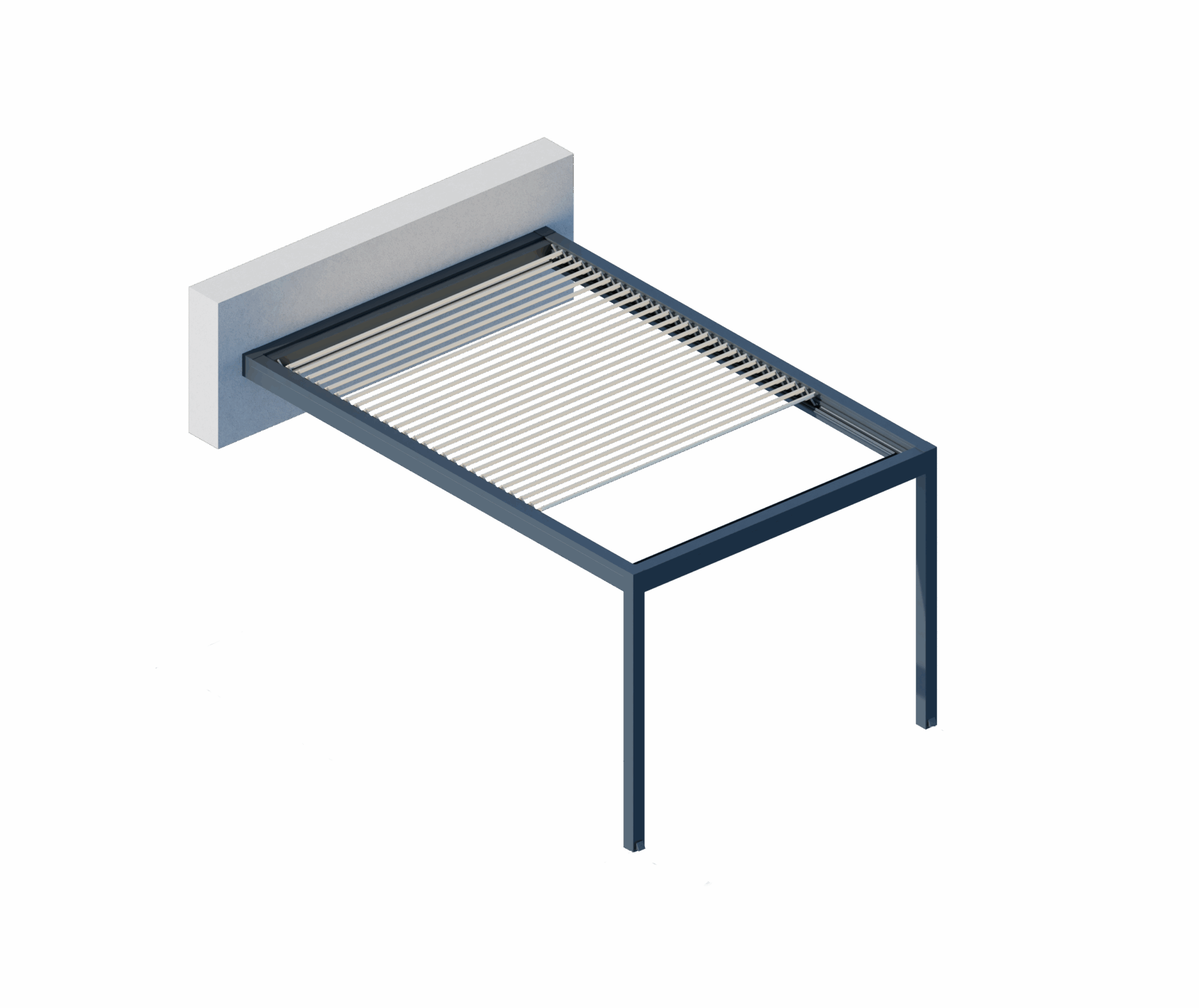

Gardena

Wall-mounted pergolas – perpendicular louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged perpendicular to the wall.
In a single-module version, the structure is supported by two posts.

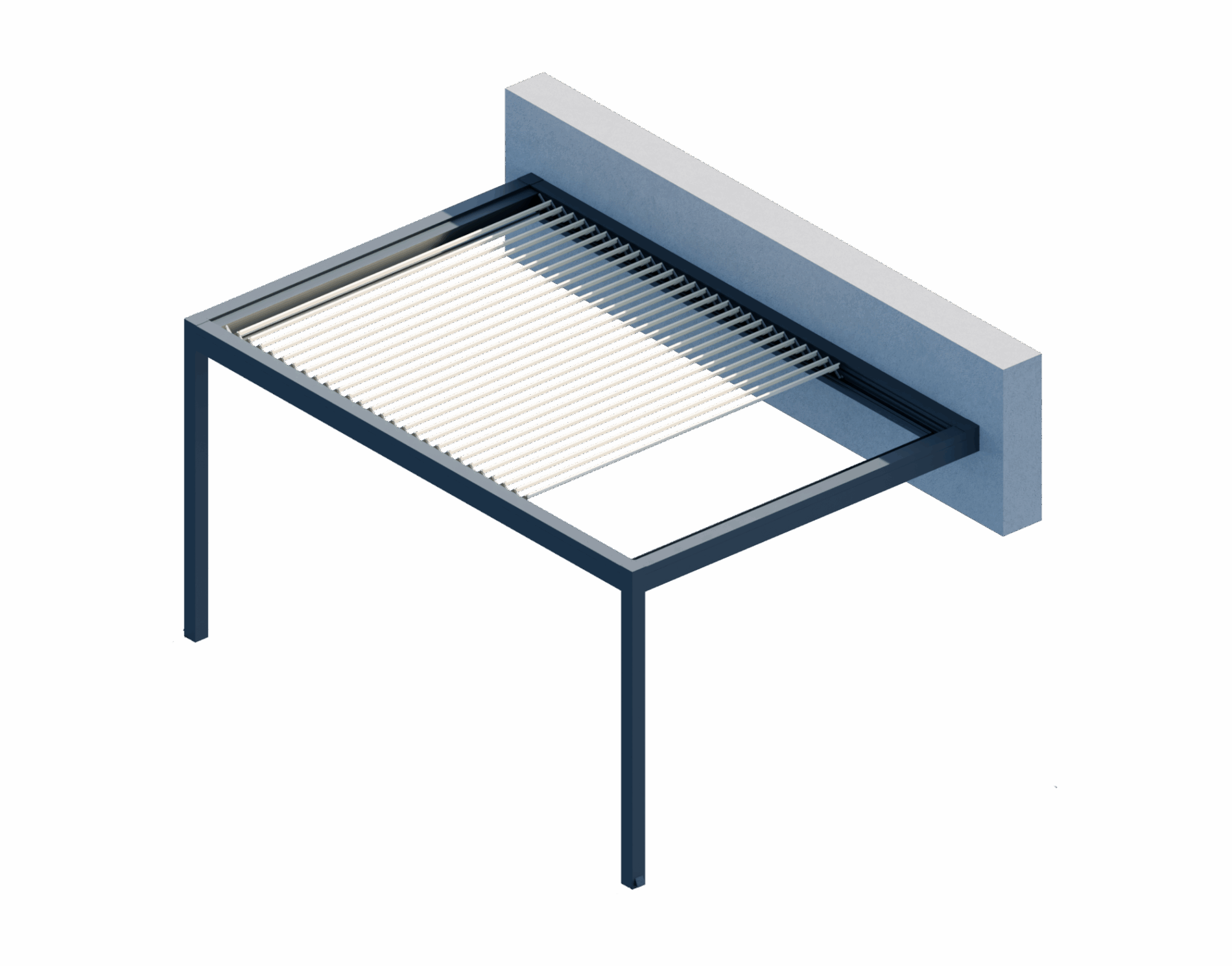

Gardena

Wall-mounted pergolas – parallel louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged parallel to the wall.
In a single-module version, the structure is supported by two posts.

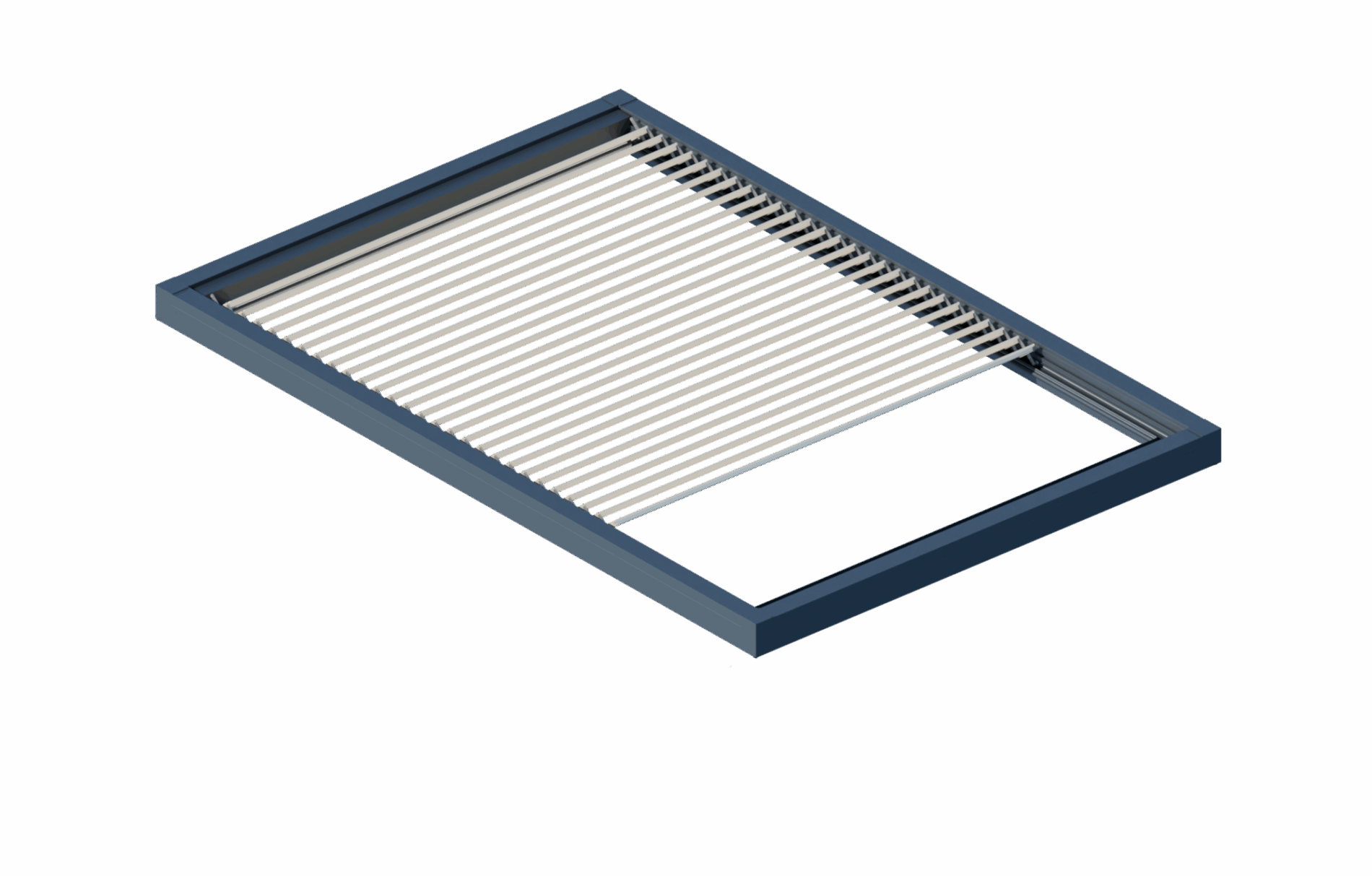

Tende

Wall-to-wall pergolas

This structure is designed as terrace roofing without supporting posts.
It is installed between walls, for example within a concrete or structural opening.

05

Dimensions

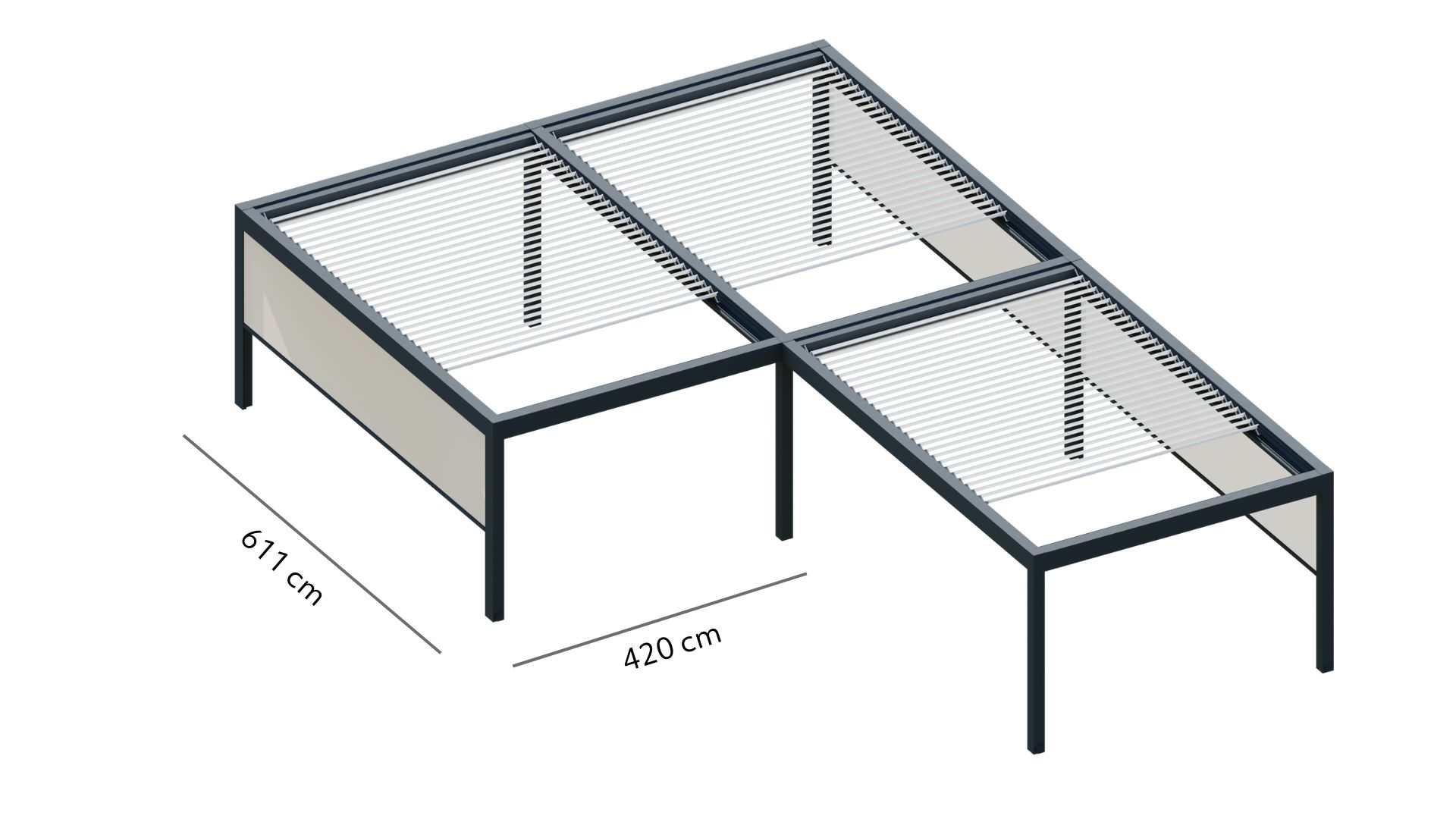

Maximum size of a single module: 420 × 611 cm.
By adding additional modules on each side, you can cover virtually any area.
Importantly, only one support post is used between modules.

06

Available colours

Opening • Louvered • Retractable

Technic View Pro

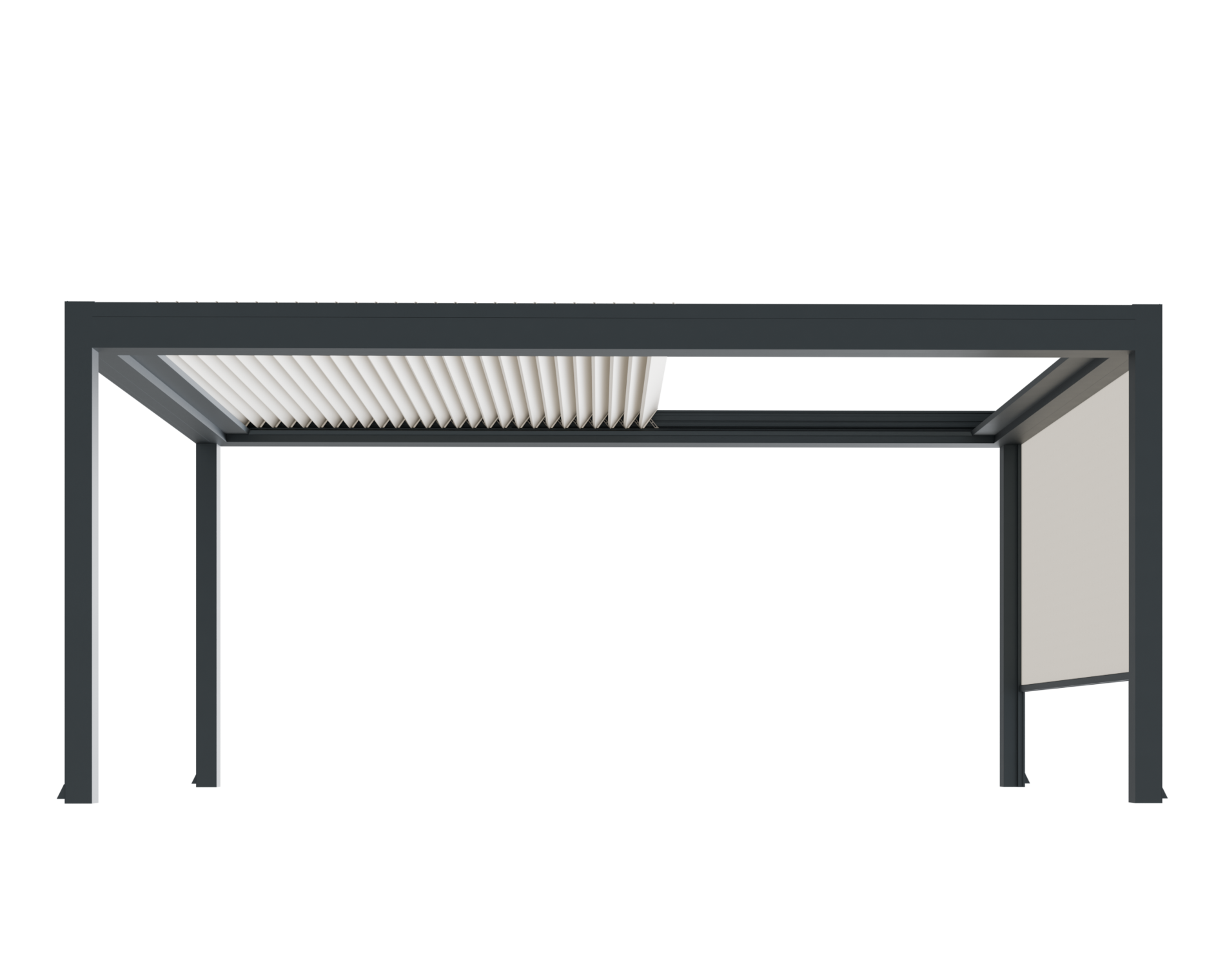

Explore the standard colours of the structure and roof (9010ST, 9007ST, 7016ST, 9005ST).
Custom finishes are also available, including any RAL colour, 3D Tiger Metallics, and wood-effect coatings.

Structure colour

Roof colour

07

Side enclosures

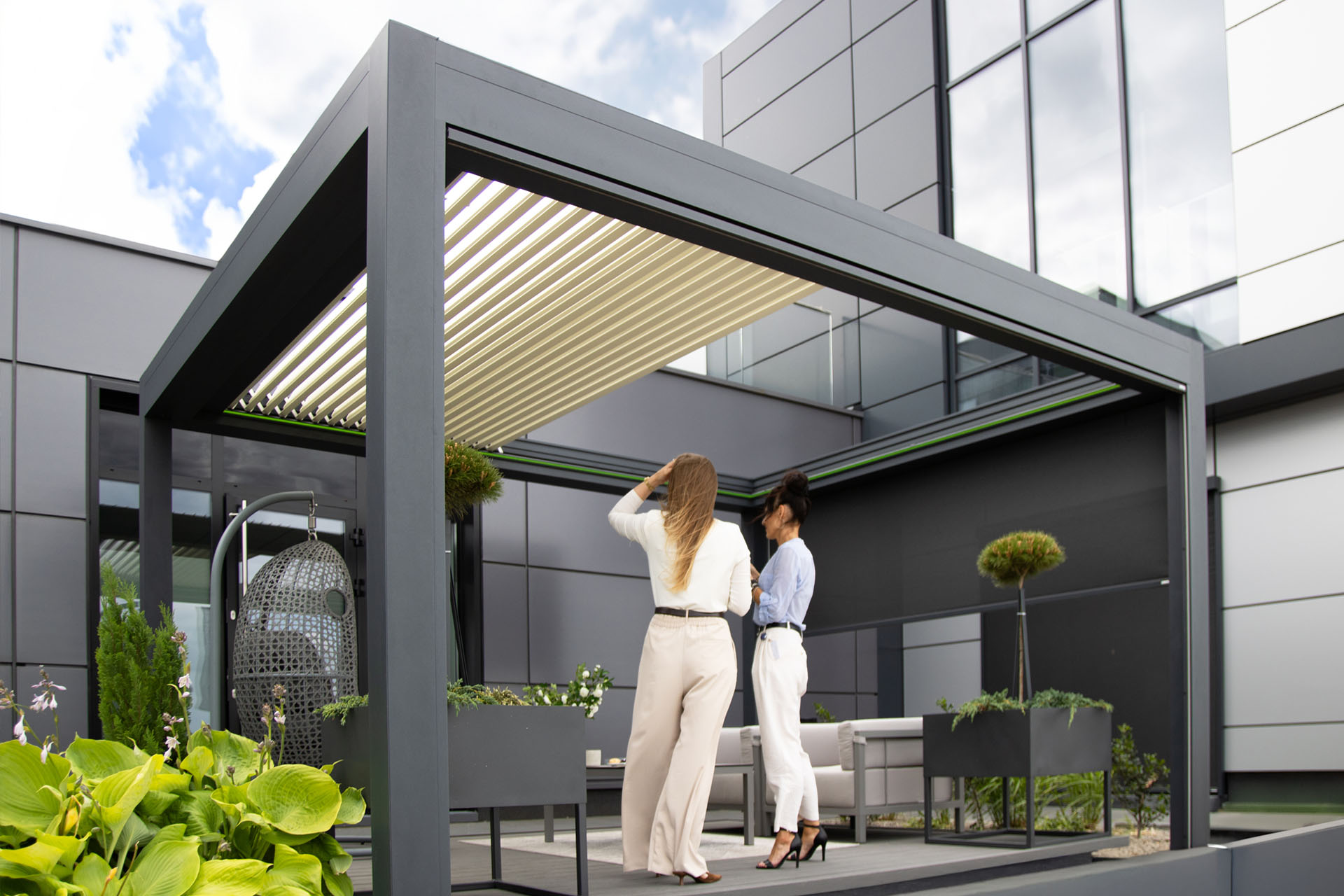

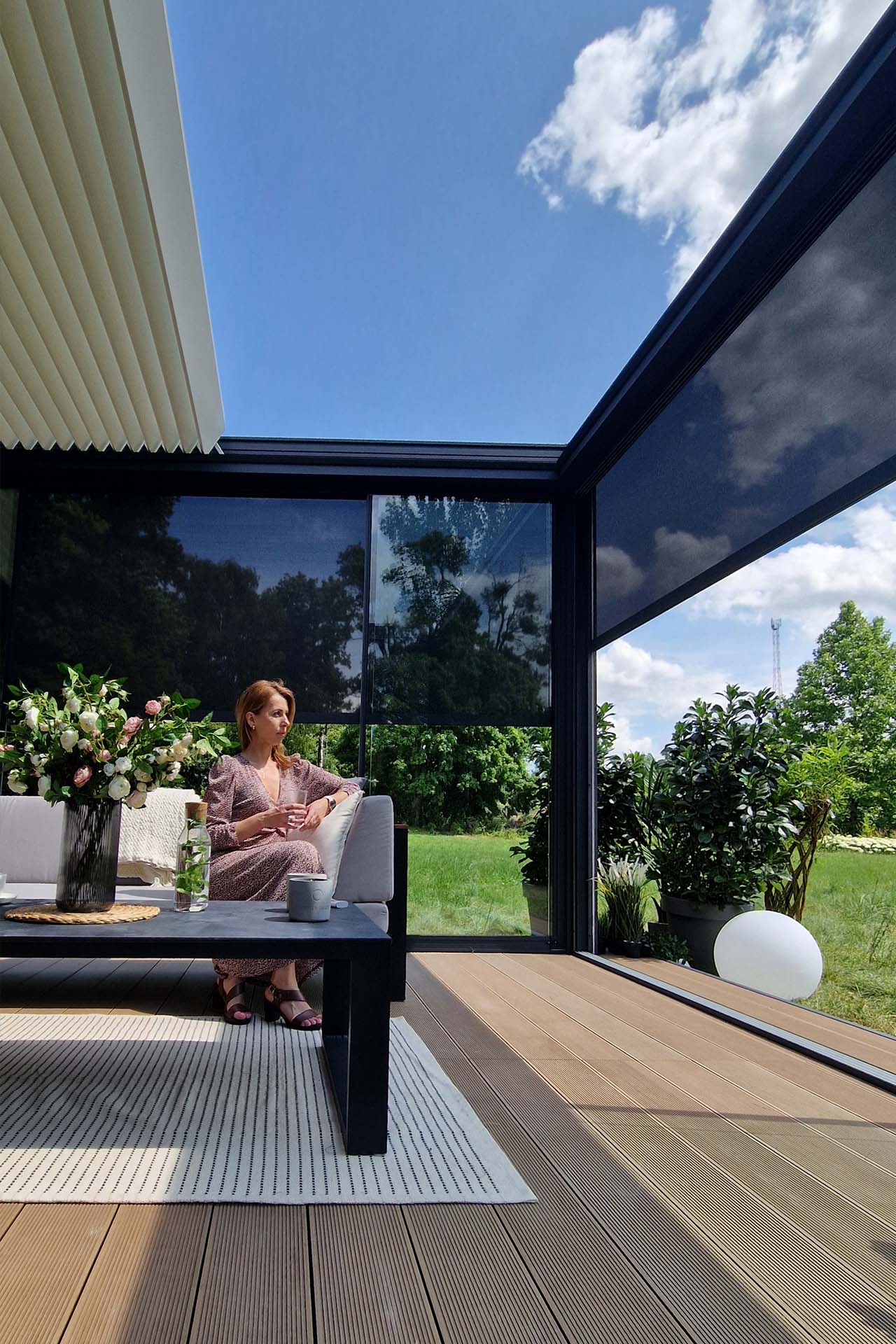

ZIP screens protect against excessive sunlight, wind, dirt and insects.
They provide privacy and act as a visual barrier from the outside, while still maintaining visibility from the inside.
The ZIP locking system and guide inserts ensure proper fabric tension and keep it securely in the guide-rails even in strong wind conditions.

In the Technic View Pro model, the ZIP screen is fully integrated and does not require an additional cassette. The fabric extends directly from the pergola frame, giving the structure a clean, elegant and modern look.

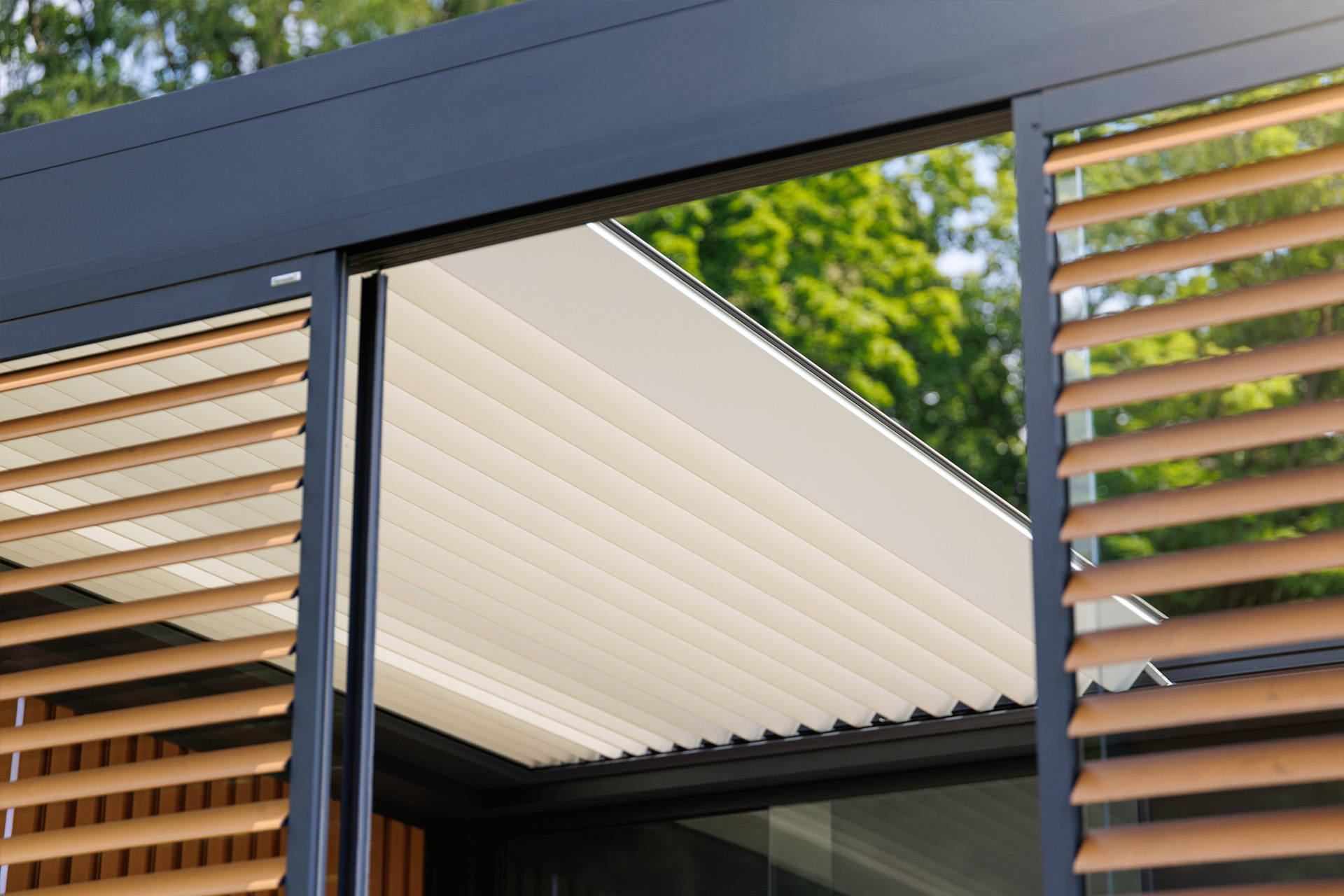

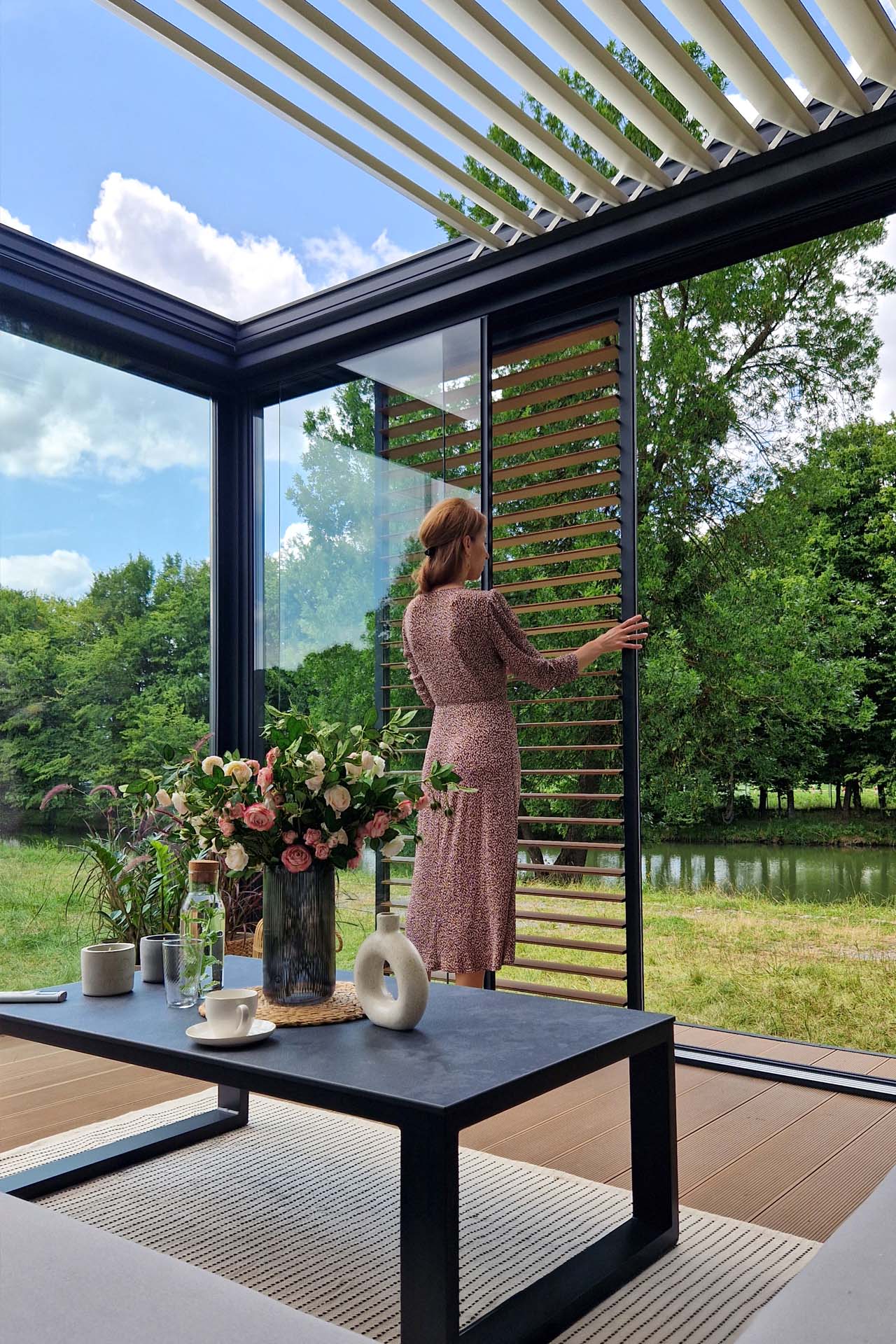

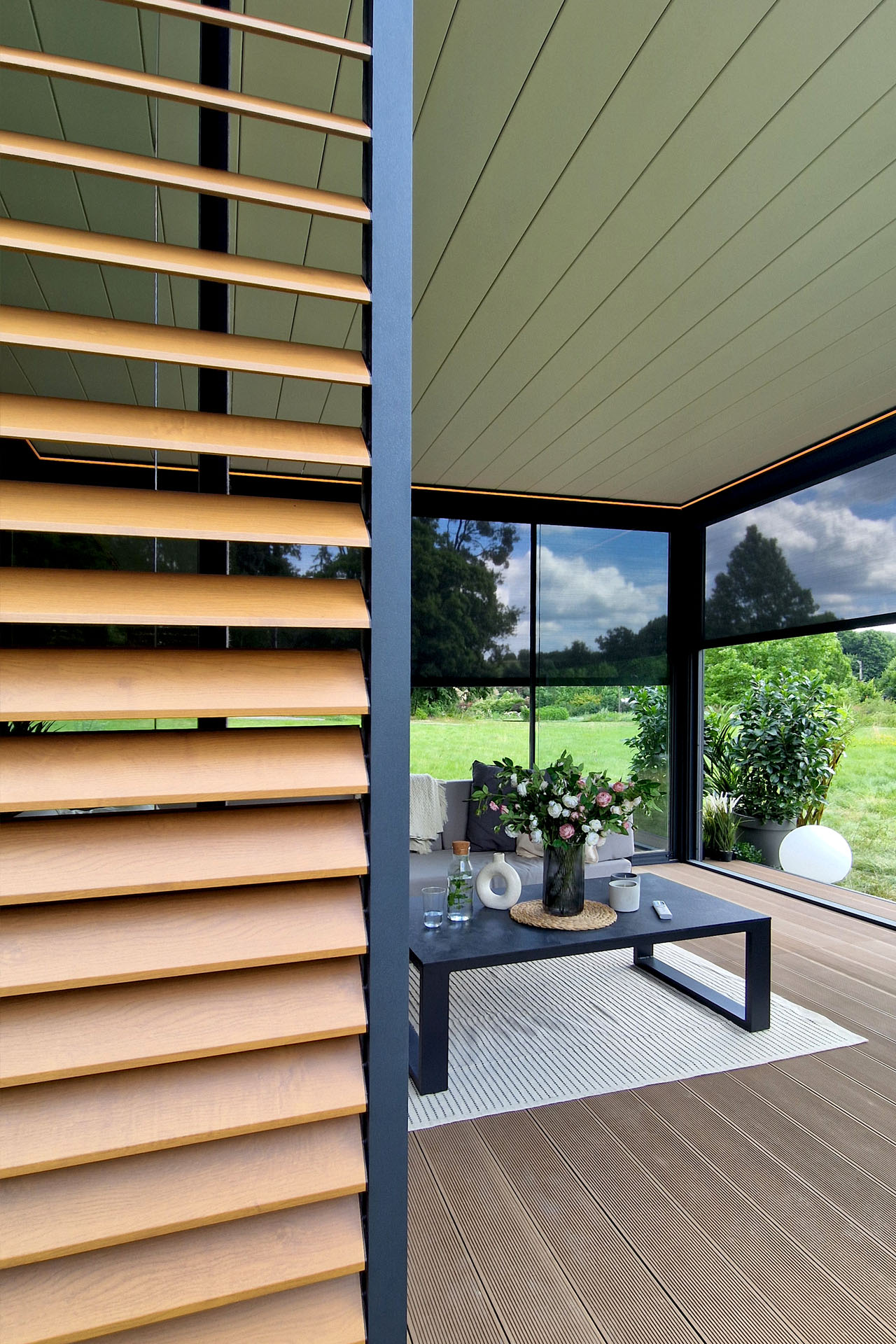

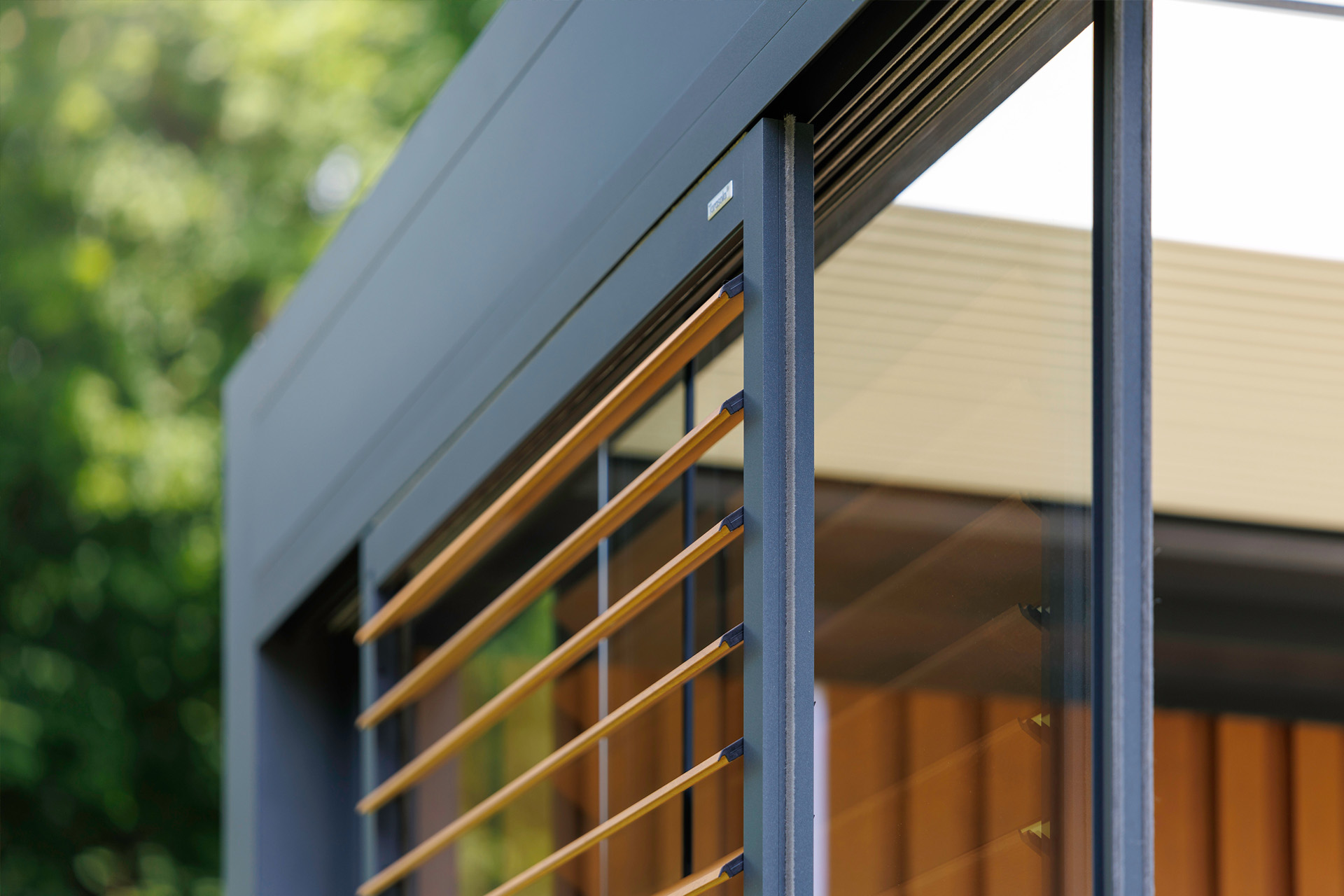

Aluminium sliding shutters designed for terraces, balconies and outdoor spaces.
They provide protection from sun and wind, while ensuring privacy and airflow.
Adjustable louvres allow you to control the angle of sunlight, while the dual-zone design gives you full control over light and shade.

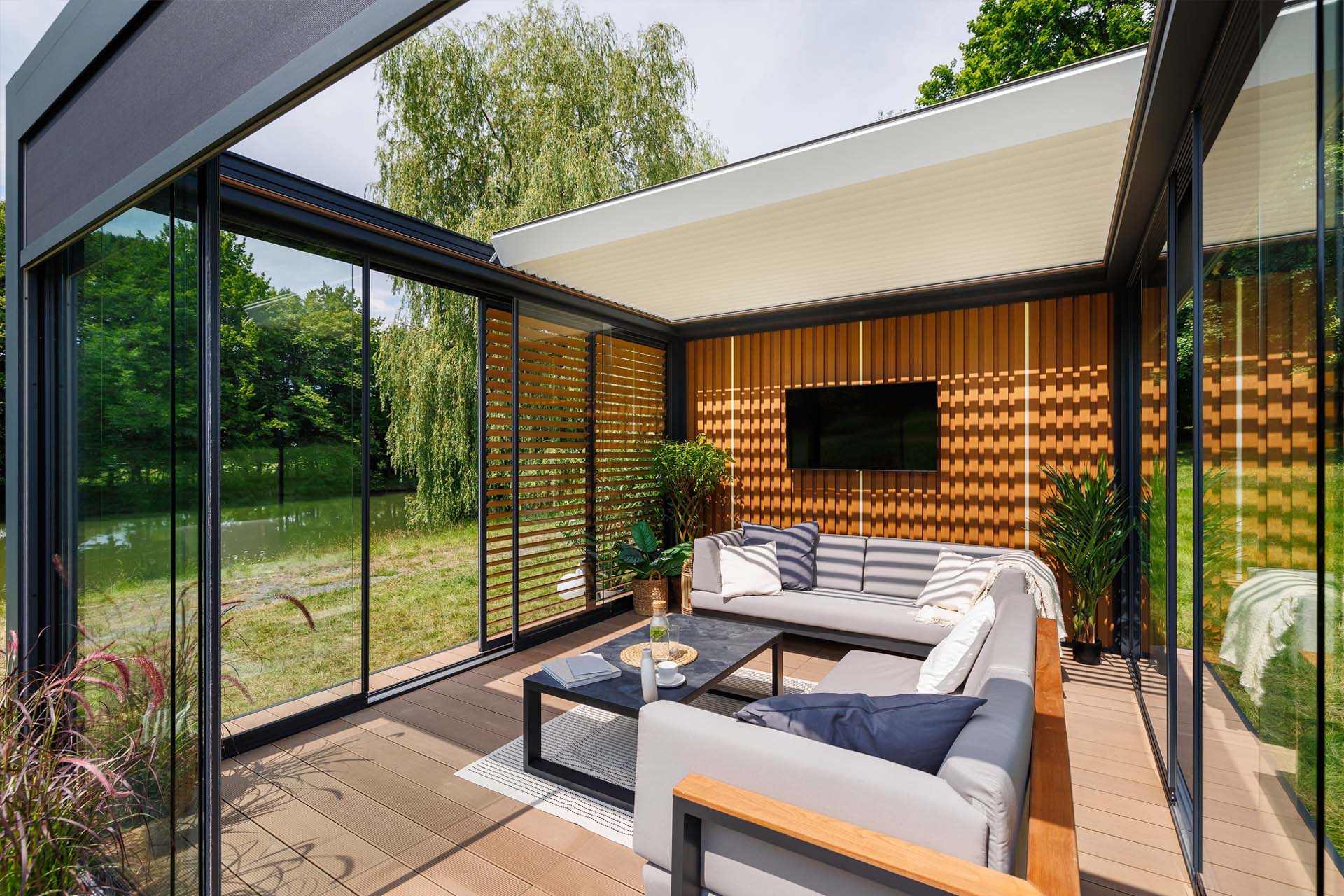

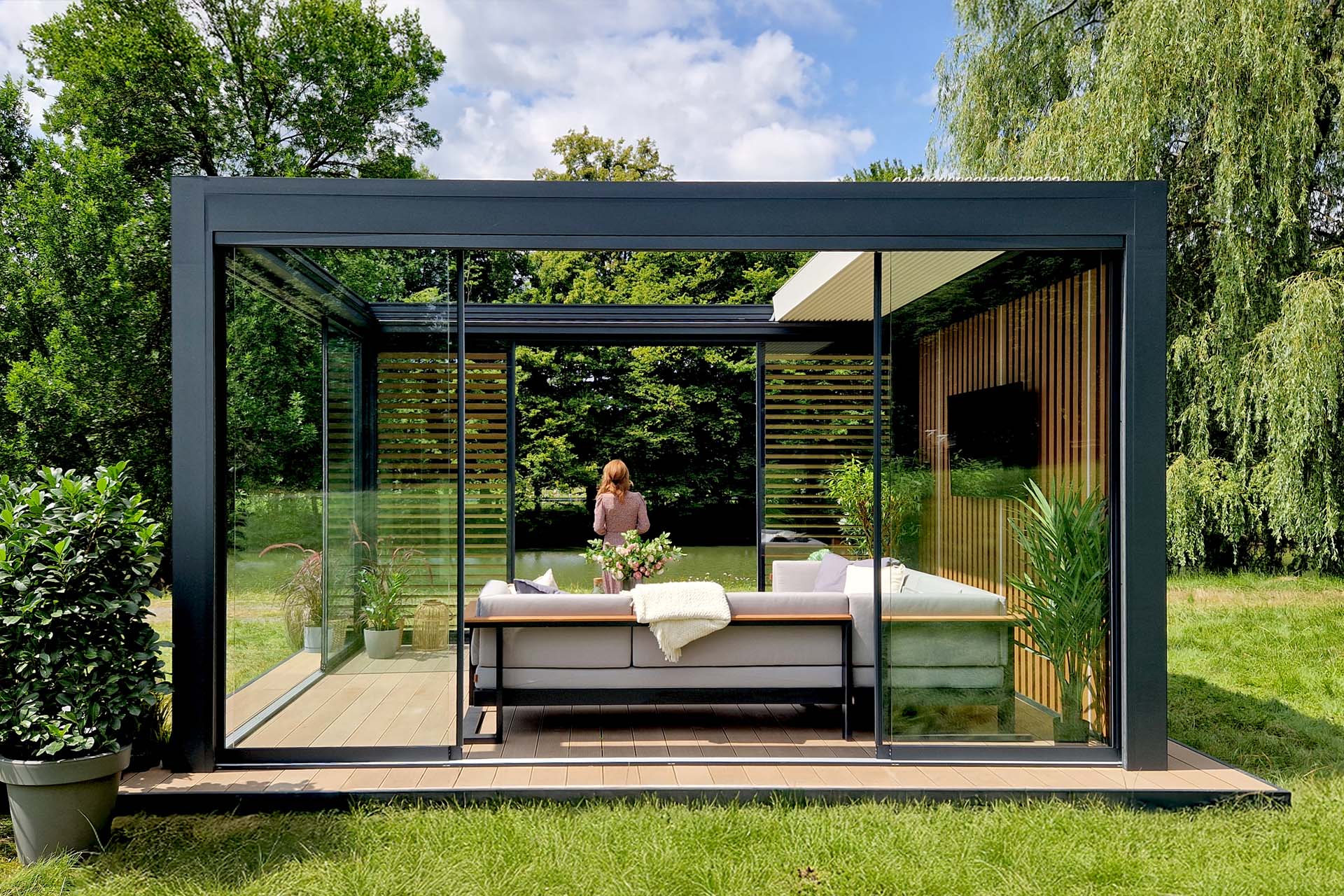

Glass enclosures protect against weather conditions without limiting natural light.
In frameless systems, they create an almost invisible barrier while maintaining a clean design.
Extend your outdoor season from early spring to late autumn.
Sliding panels can be easily opened or closed depending on your needs.

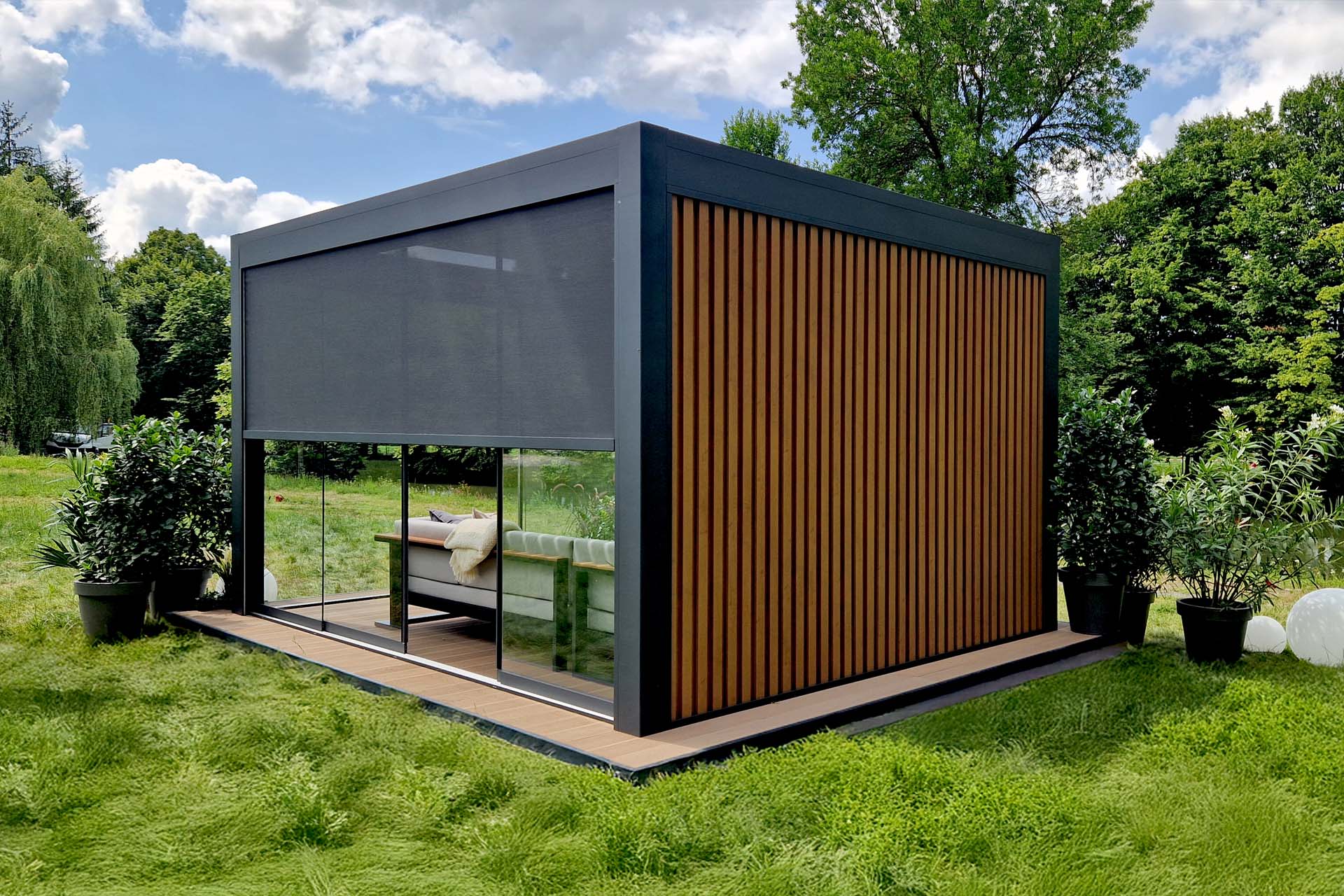

A fixed wall panel is a versatile solution that can be used as both partial and full enclosure of the structure. Made of high-quality aluminium, its main function is to provide protection against intense sunlight, wind and rain.


09

Compare

Compare products

Select products you want to compare

No data available for the selected products.
Product

10

Configurator

Configure your product

Customise your ideal pergola.
Explore available options and create a space tailored to your needs.

CONTACT

Get in touch with us

    Contact form

    The maximum file size is 5 MB.
    Allowed file formats are JPG, PNG, and PDF.

    After reviewing the Privacy Policy, I declare that:
    Tarasola customers value the high quality of our products, refined design and well-thought-out solutions that make everyday outdoor living more comfortable.

    Yes, Technic View Pro is designed to withstand snow loads. Its aluminium structure and robust connections ensure durability and strength.

    Tarasola Technic View Pro provides effective protection from excessive sun in summer and snow in winter.

    In the Tarasola Technic View Pro, the louvres retract. When opening, they rotate from a horizontal to a vertical position, then align in parallel and slide to the side, forming a compact stack that occupies approximately 25% of the roof area.

    Technic View Pro features automatic control that can be integrated with Teleco or Somfy IO Homecontrol systems. It can also be supplied without built-in control and connected to an external control system.

    Yes, side enclosures can be added to the Technic View Pro.
