Opening • Fixed

Glass Module in Technic View

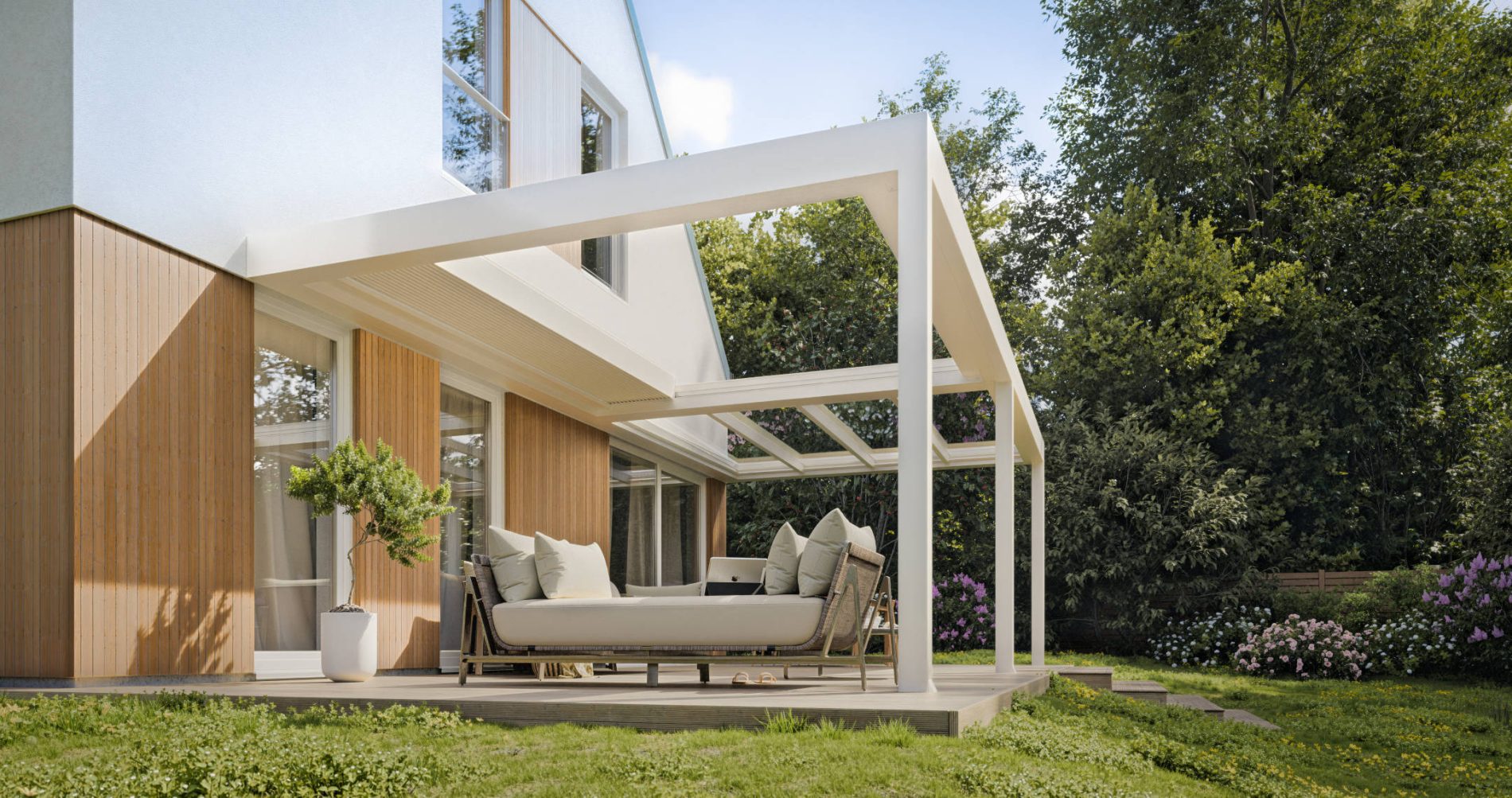

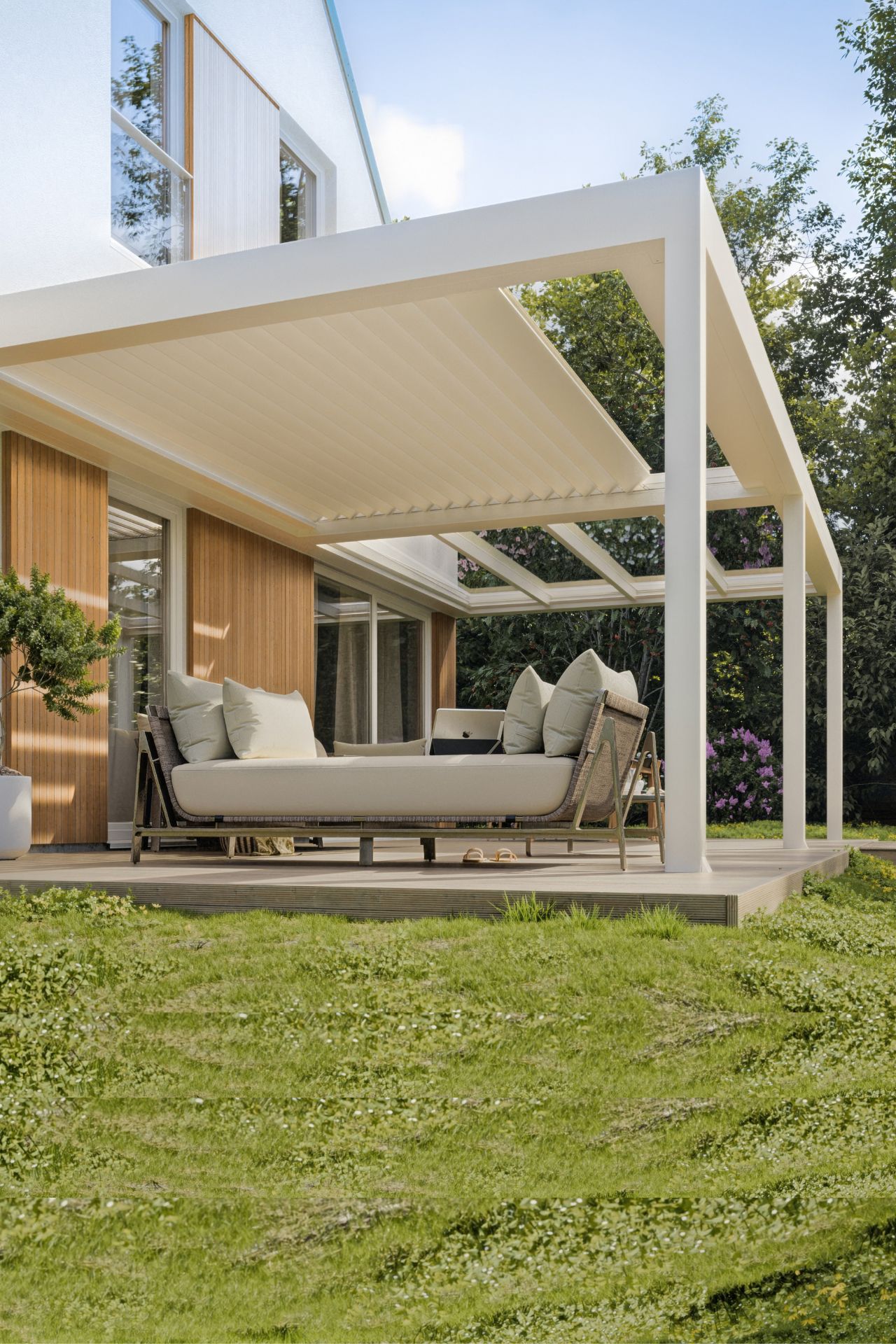

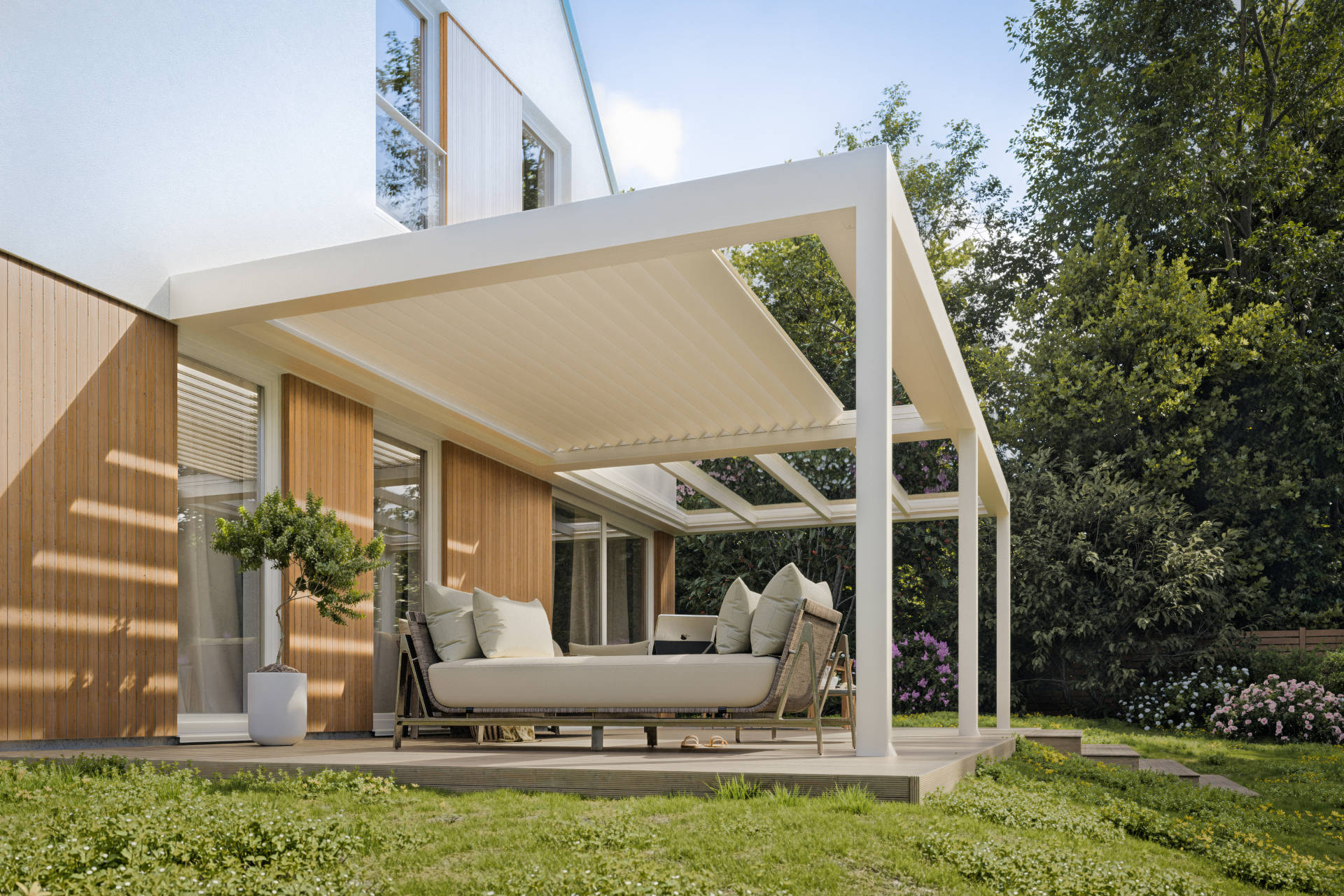

Glass Module in a sliding aluminium louvre roof

01

Description

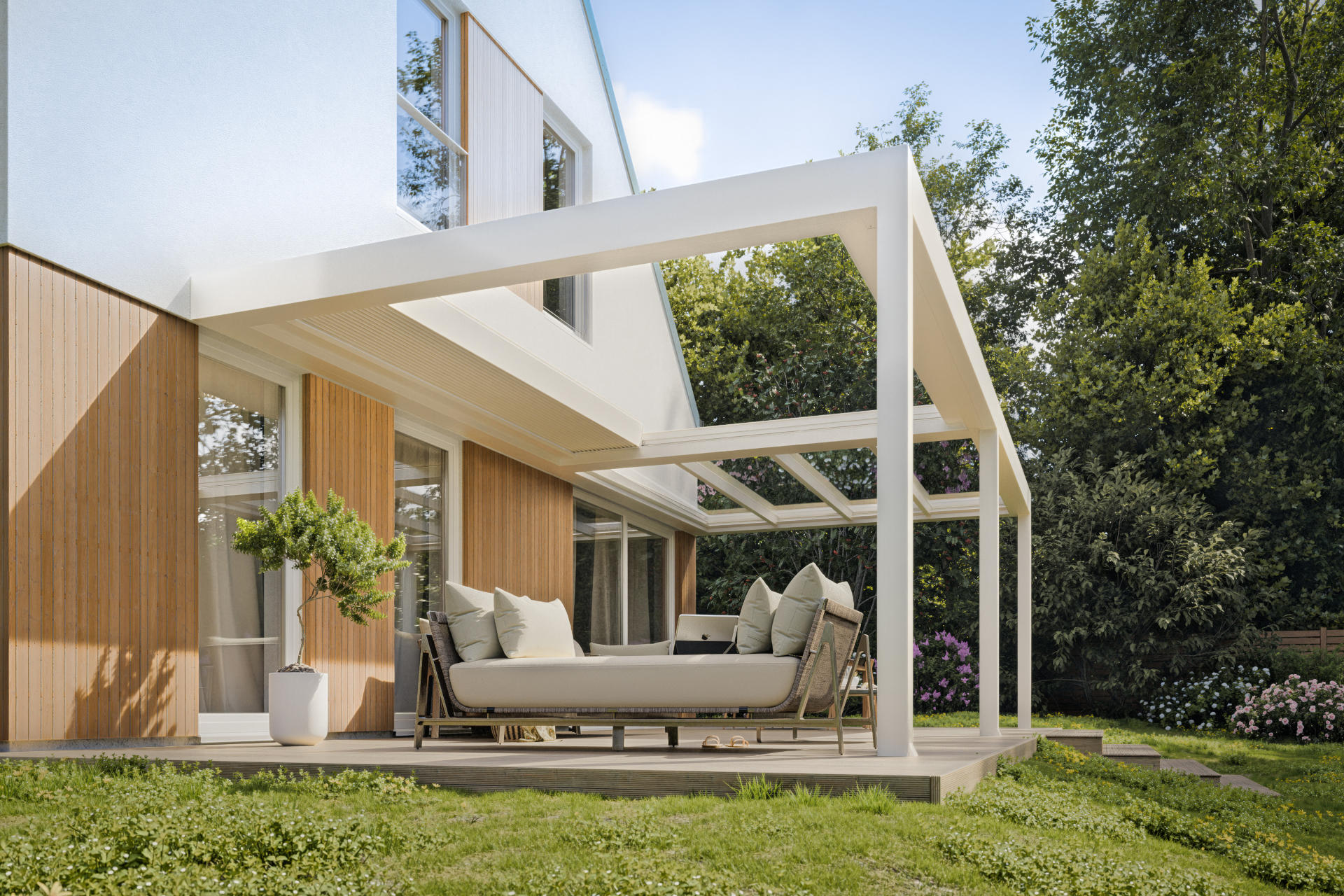

A glass module positioned alongside a louvred roof is a highly functional solution that combines the benefits of an opening roof with those of a fixed, transparent glass roof.

The Technic View louvred roof provides shade for the terrace and protection against rain.

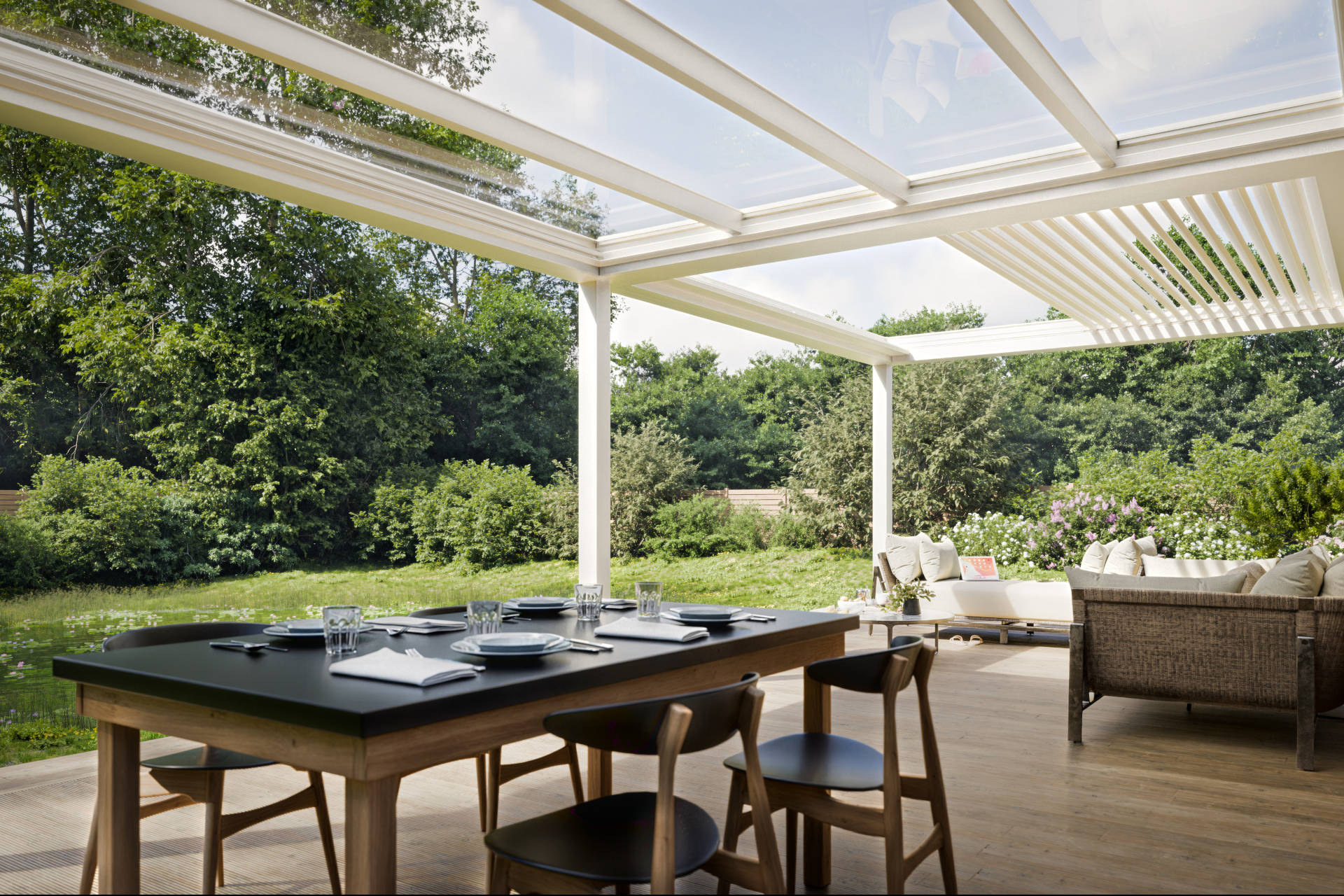

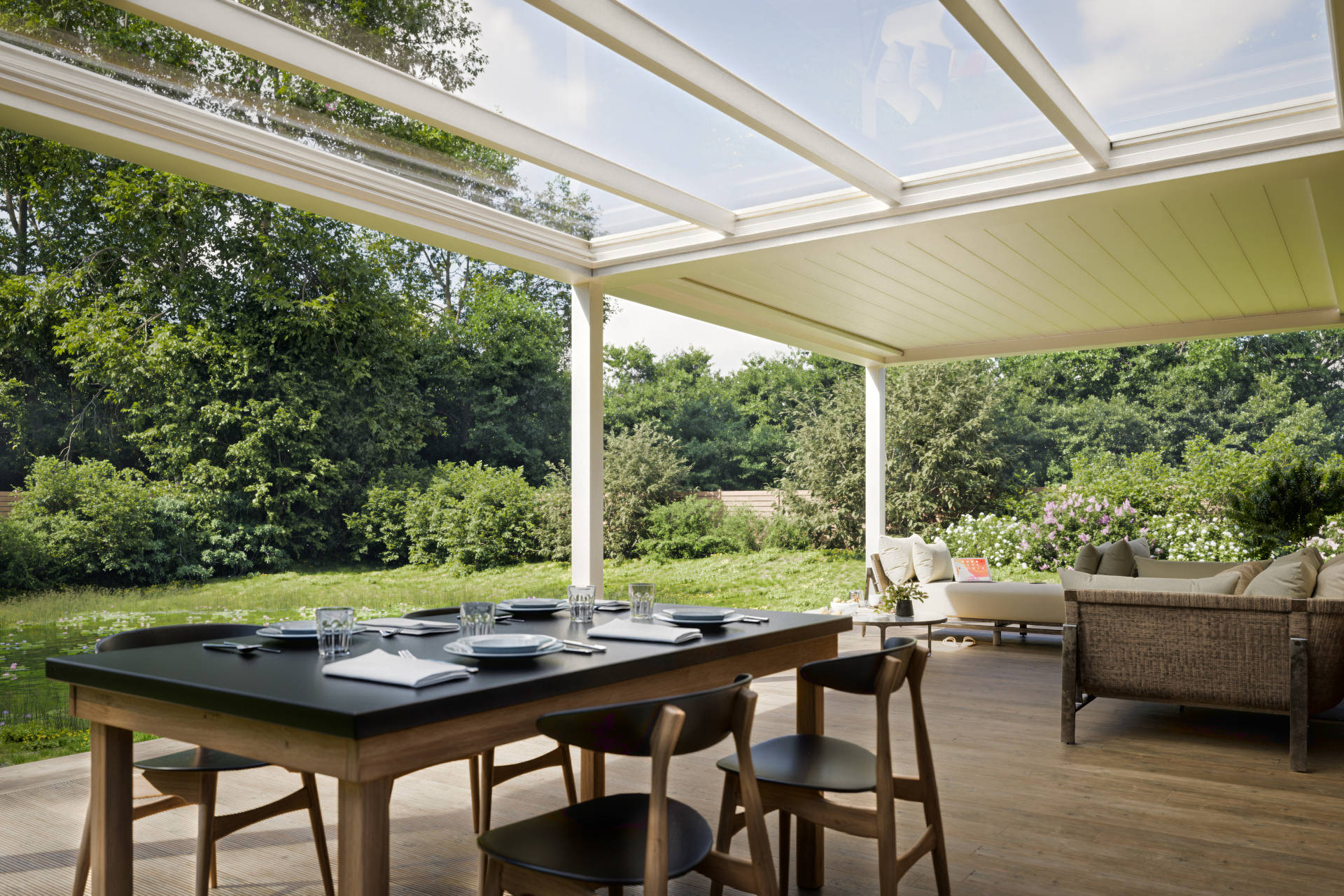

The glass roof allows maximum natural light to enter. It also provides protection against rain without shading the space below, allowing more daylight to reach selected areas of the terrace.
02

Key features

The glass roof allows maximum natural light to enter, making it an ideal solution for terraces where additional daylight is needed in selected areas.

All structural elements, including the posts, frame and roof louvres, are made of extruded aluminium and finished with powder coating.

When closed, the roof provides protection against rain.
The structure is equipped with an integrated drainage system.

During opening, the louvres rotate from a horizontal to a vertical position.
They align parallel and slide to the side, forming a compact stack that occupies only 25% of the roof area.
When open, the roof allows natural air circulation and lets in as much sunlight as needed.
When closed, it protects against overheating, rain and snow.

The chambered aluminium louvres protect the terrace from excessive heat build-up.
They provide effective shading, while the sliding louvres allow precise control of incoming light.

A fixed glass roof with no opening option.
Provides a high level of natural light.
A great solution for terraces that need to be brightened.

The permissible snow load depends on the dimensions of the structure and the type of roof used in the module.

Glass Module: 110–175 kg/m²
Louvre Module: 120–600 kg/m²

The structure is designed to withstand wind speeds of up to 120 km/h.

The roof can be controlled via remote control or a smartphone app.
The app allows you to operate the roof from anywhere (with internet access), set automation scenarios, and simulate presence at home (e.g. by turning on the terrace lighting).

04

Models

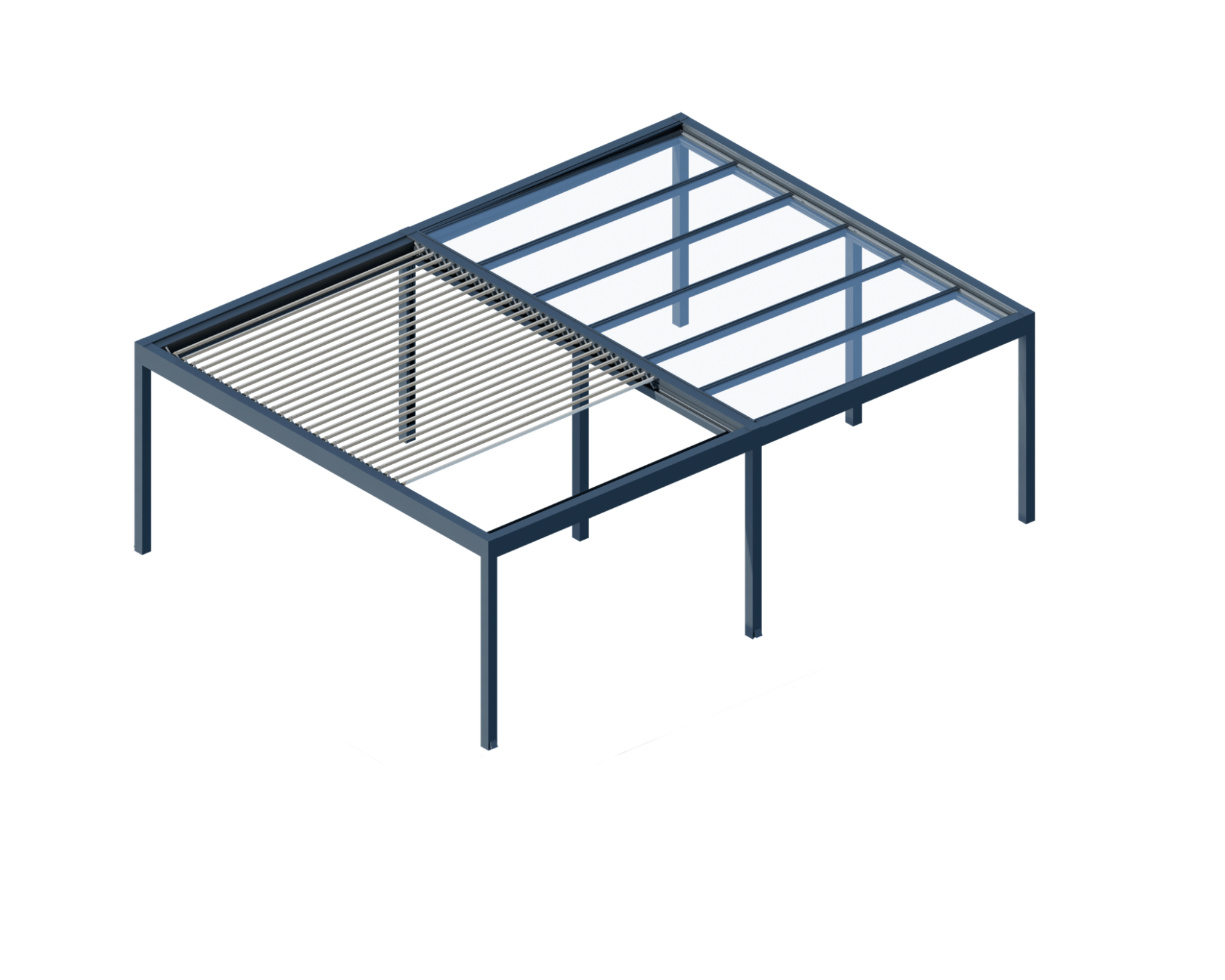

Pavilon

Free-standing pergola

A free-standing structure with no need to attach it to the building.

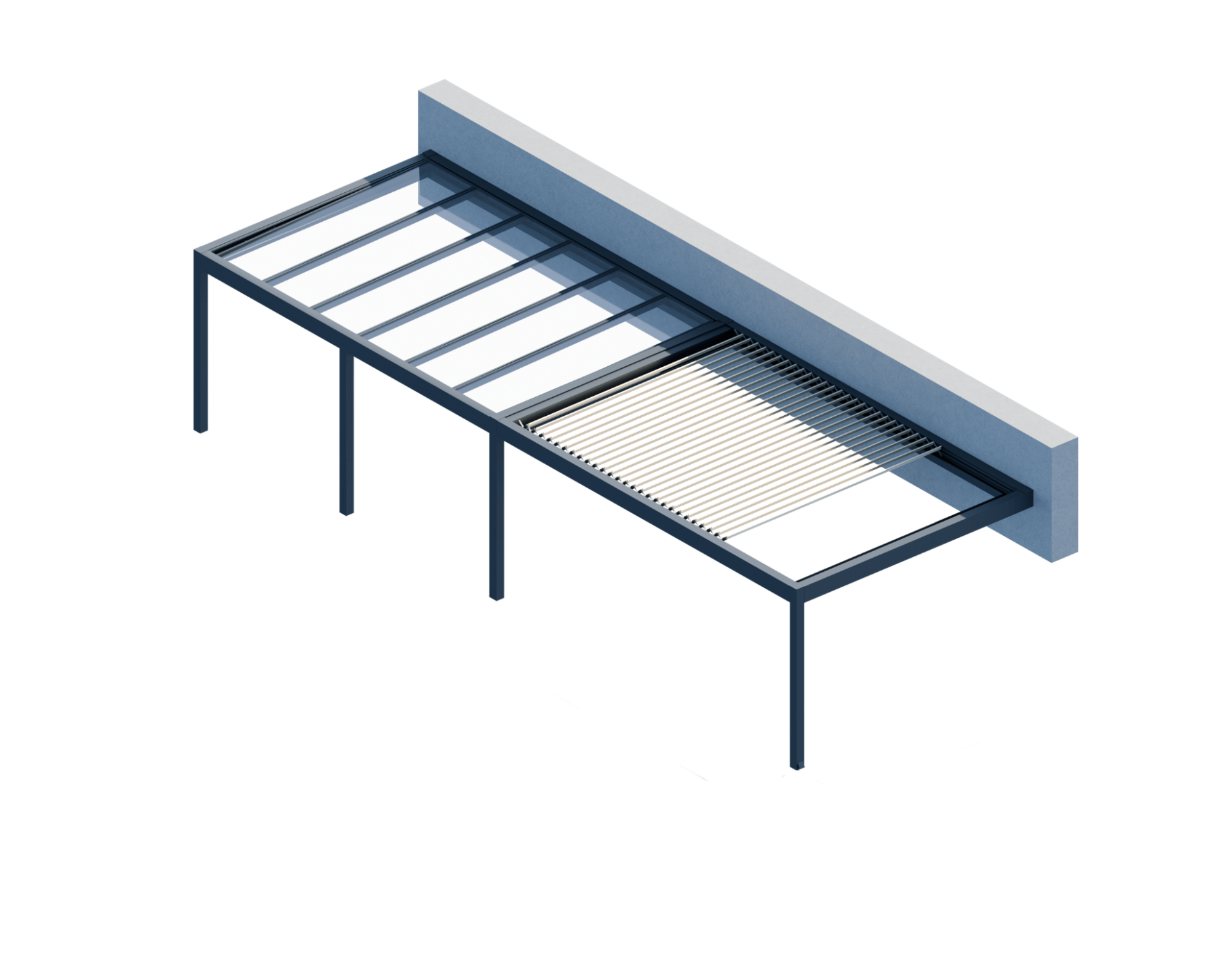

Gardena

Wall-mounted pergola: perpendicular louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged perpendicular to the wall.

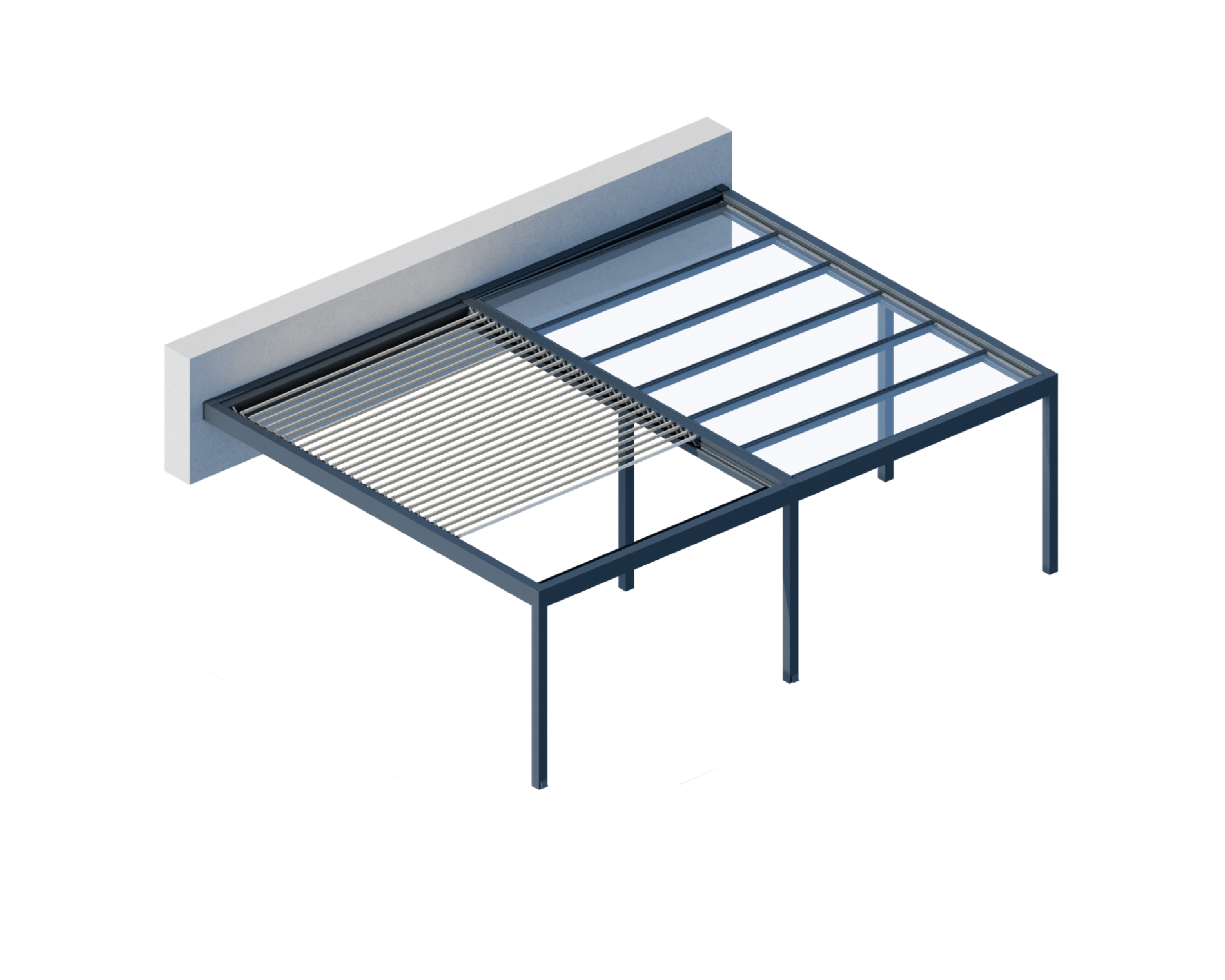

Gardena

Wall-mounted pergola: parallel louvres

Mounted to the building on one side and supported by posts on the other.
The roof louvres are arranged parallel to the wall.

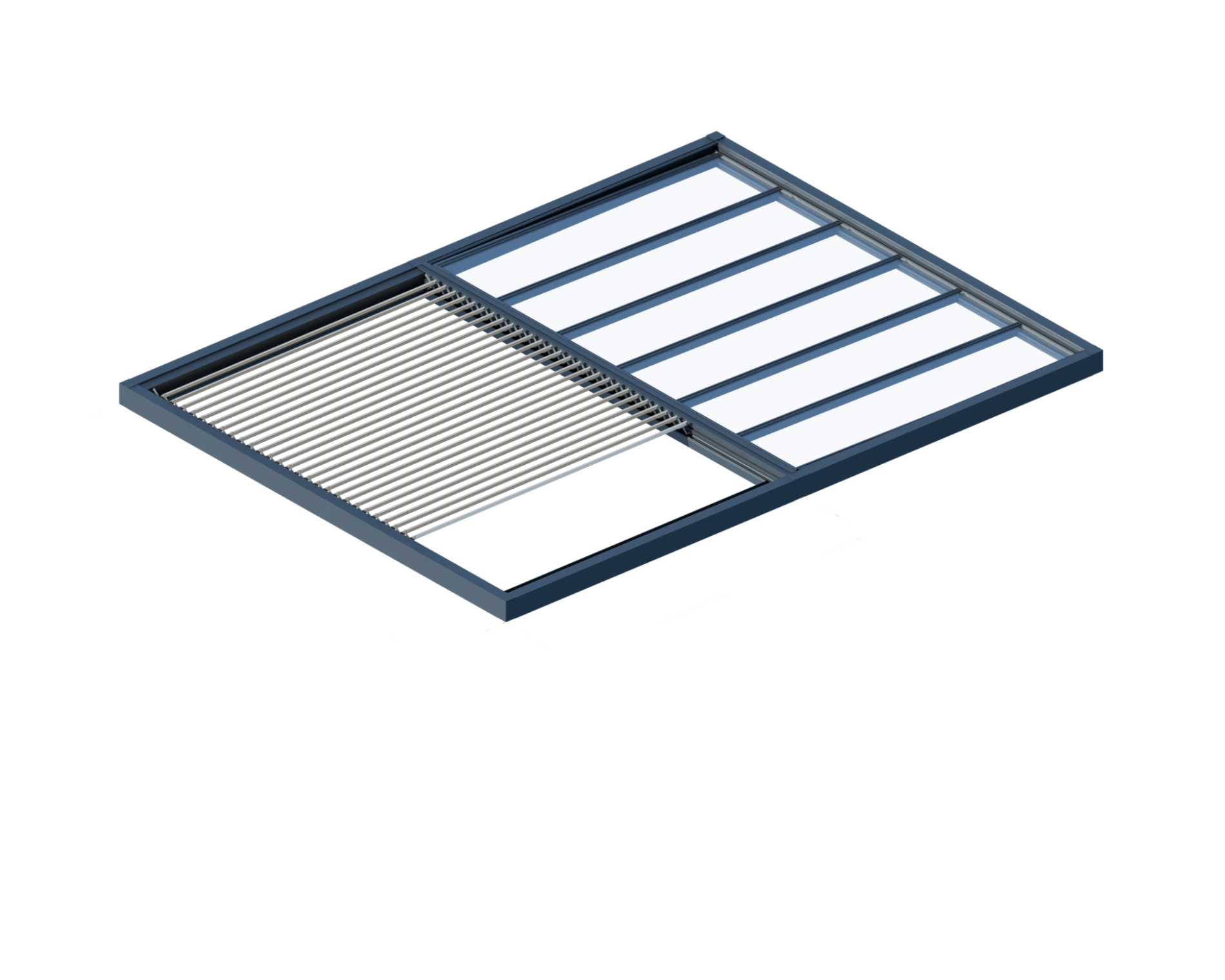

Tende

Wall-to-wall pergola

This structure is designed as a pergola without supporting posts.
It is installed between walls, for example within a concrete or structural opening.

05

Dimensions

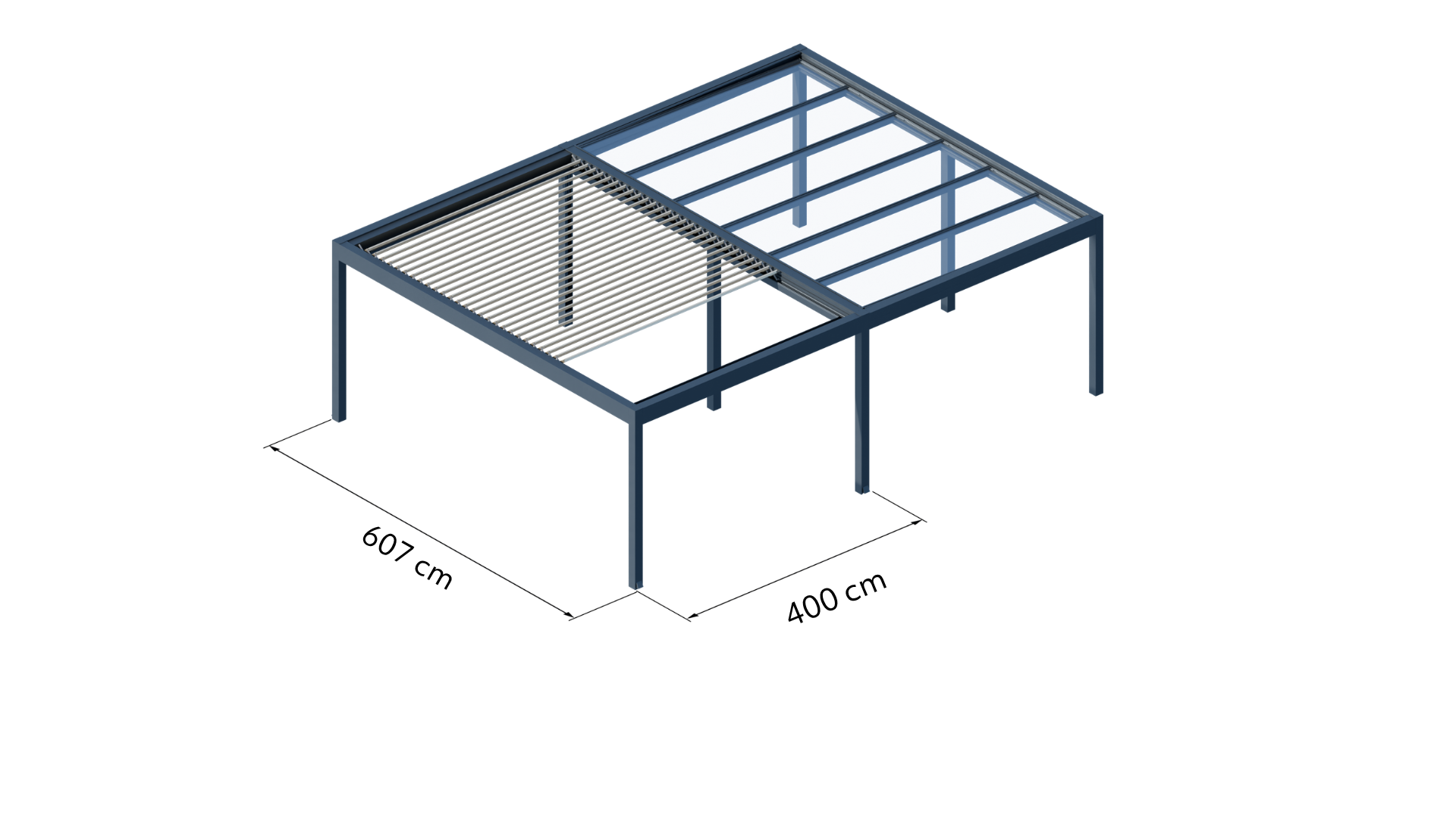

Variant 1
The maximum dimensions of a single module are 400 × 607 cm.

Dimensions

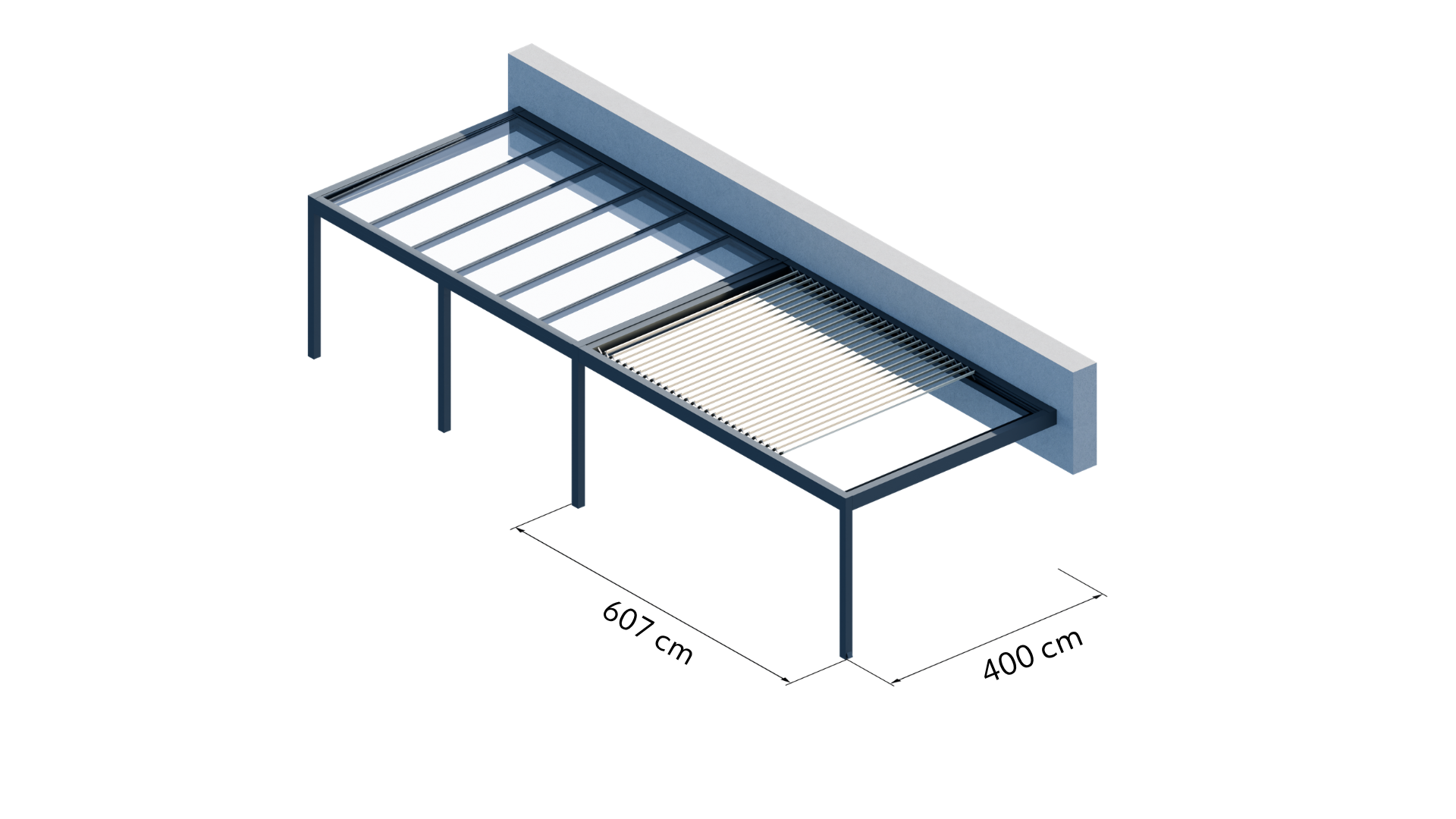

Variant 2
The maximum dimensions of a single module are 400 × 607 cm.

06

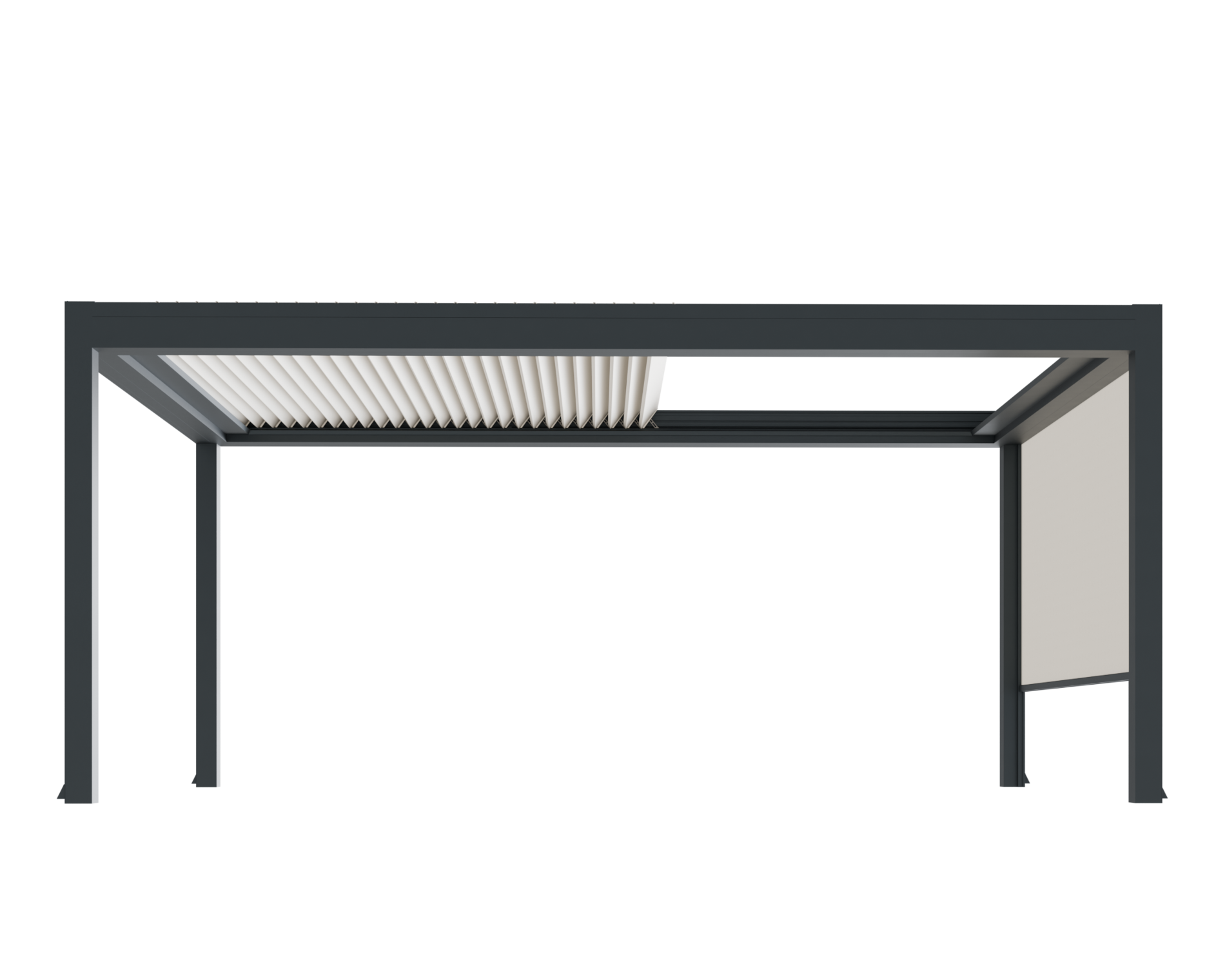

Available colours

Hybrid roofs

Glass Module in Technic View

Explore the standard colours of the structure and roof (9010ST, 9007ST, 7016ST, 9005ST).
Custom finishes are also available, including any RAL colour, 3D Tiger Metallics, and wood-effect coatings.

Structure colour

Roof colour

07

Side enclosures

ZIP screens provide protection against excessive sunlight, wind, dirt and insects. They offer greater privacy by shielding the terrace from neighbours’ view while still allowing visibility from inside. The ZIP locking system and guide inserts (jak na stronie ZIP Screens) keep the fabric taut and securely in place within the guide rails, even during gusts of wind.







Shutters are sliding aluminium panels, ideal for enclosing terraces, balconies and loggias. They provide protection against sunlight and wind while enhancing privacy. The adjustable louvres allow you to control their angle, while the two-zone adjustment system offers precise control over the amount of sunlight entering the space.

Glazing systems provide effective protection against the elements without restricting natural light. Frameless glazing creates an almost invisible enclosure, preserving unobstructed views. These systems extend the outdoor living season from early spring to late autumn. The sliding panels can be easily opened or closed as needed.

The fixed panel is a versatile solution that can be used to partially or fully enclose the sides of a pergola. Made from high-quality aluminium, it provides effective protection against intense sunlight, wind and rain.
